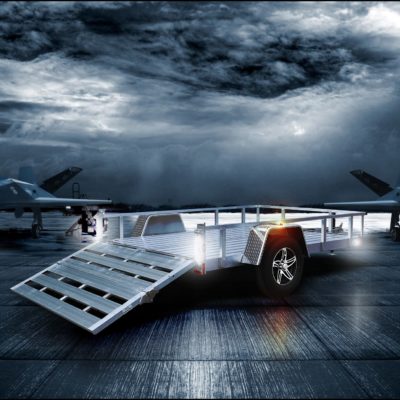

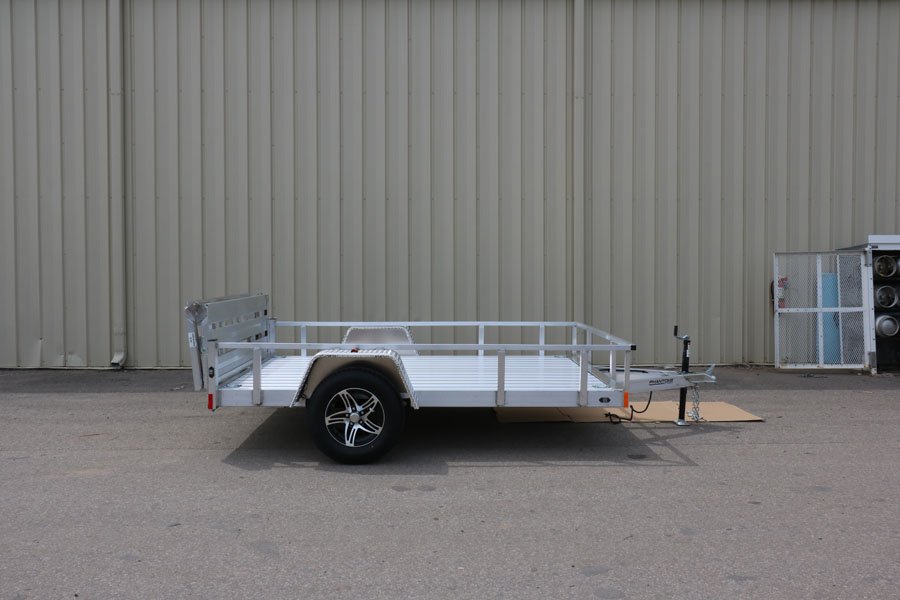

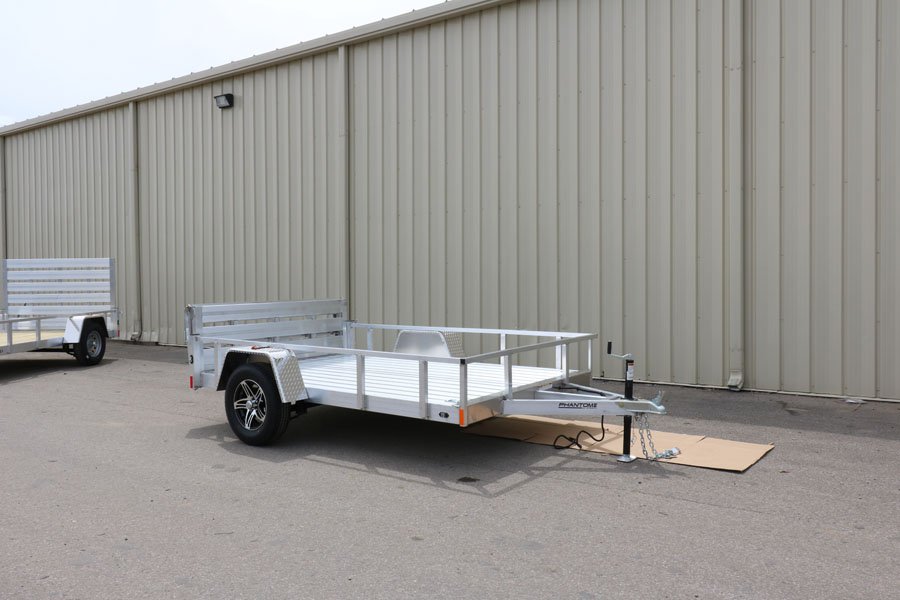

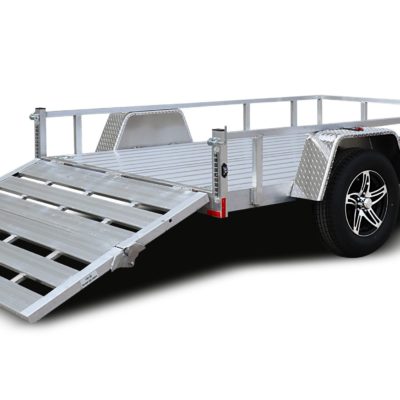

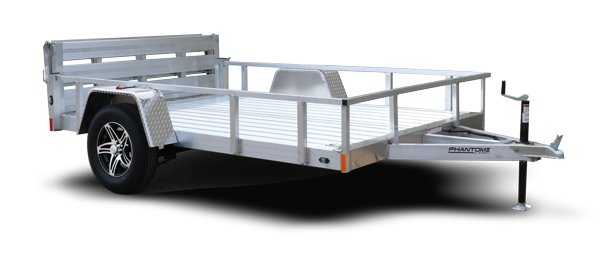

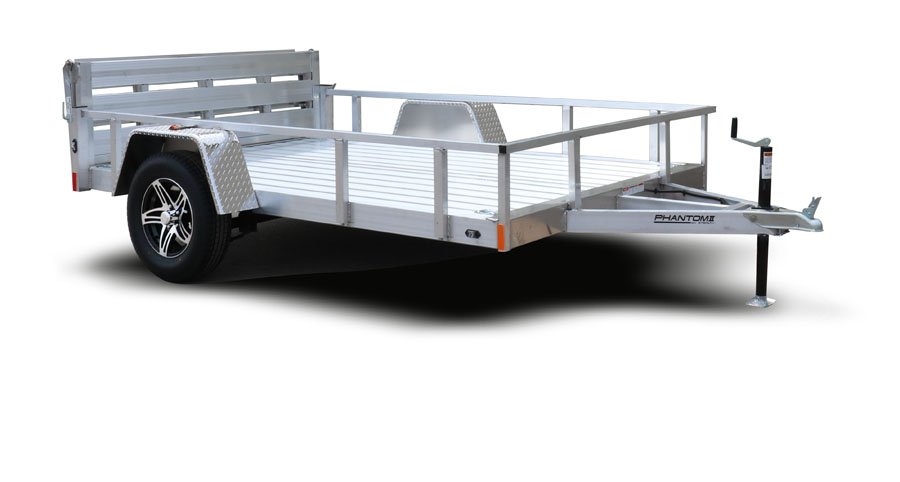

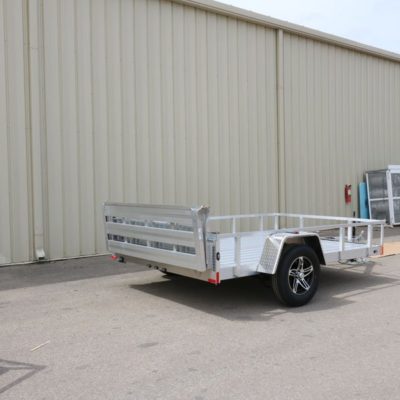

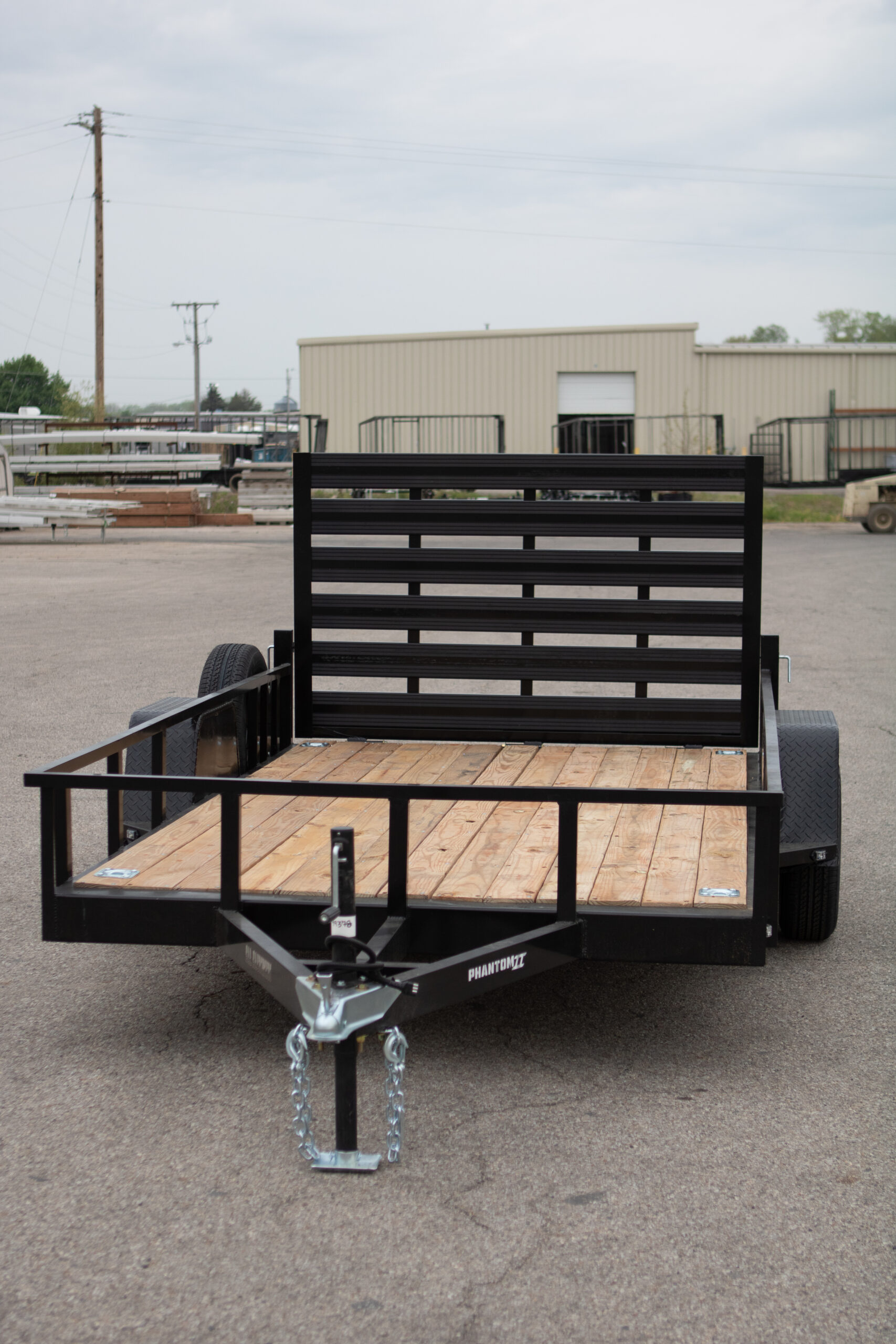

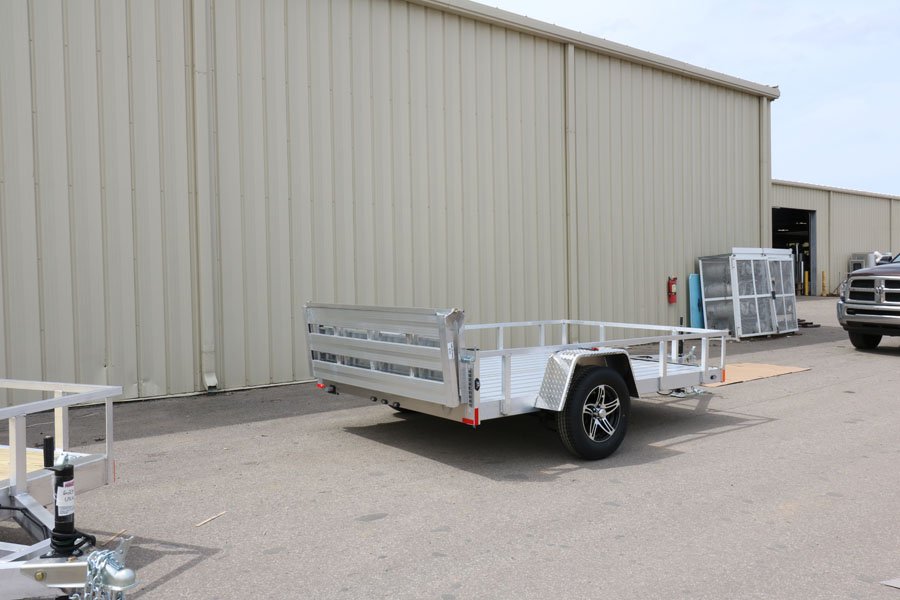

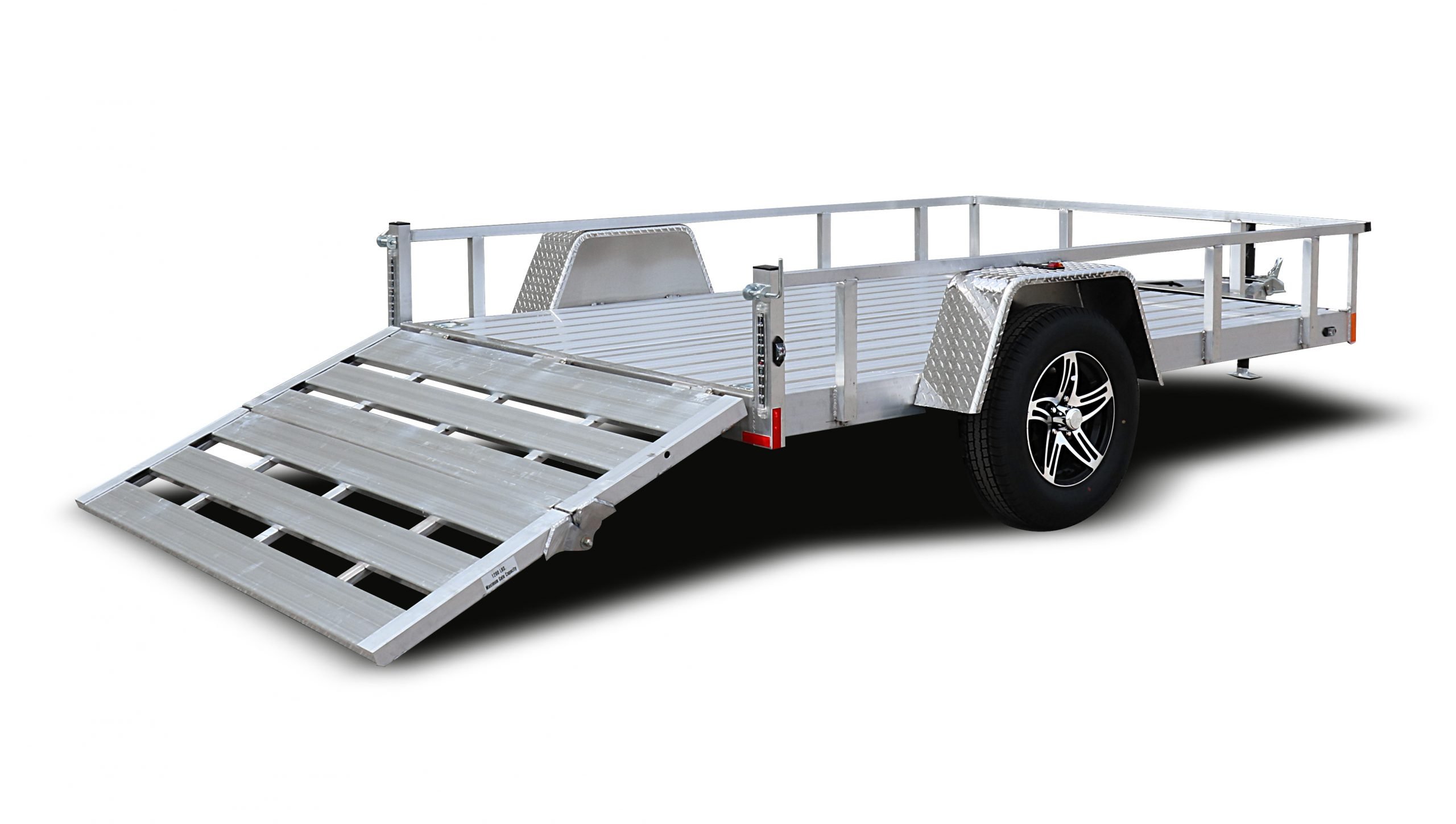

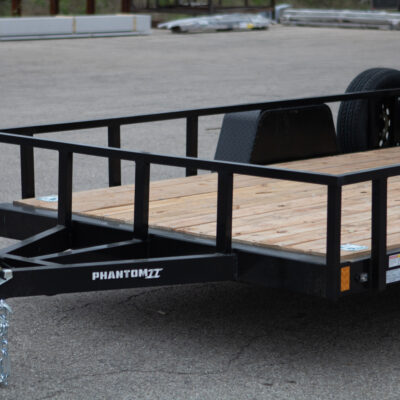

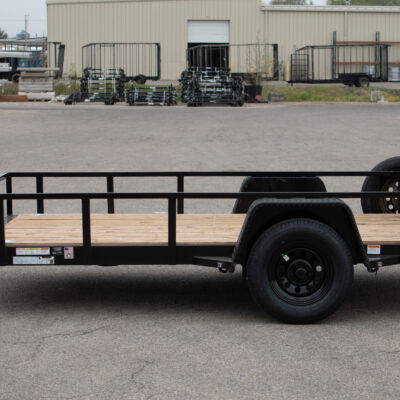

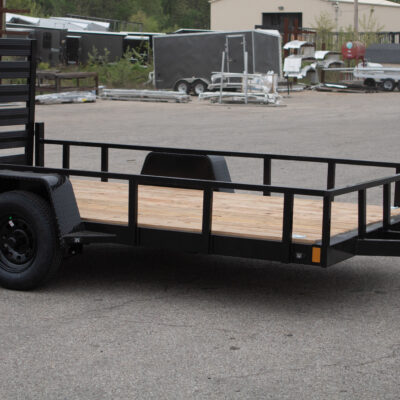

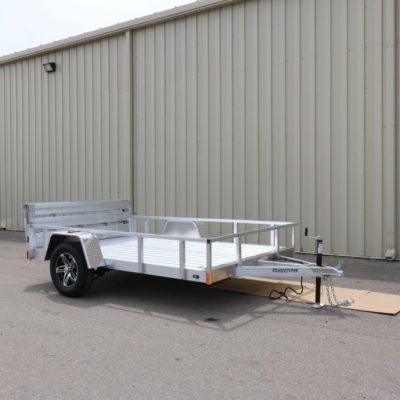

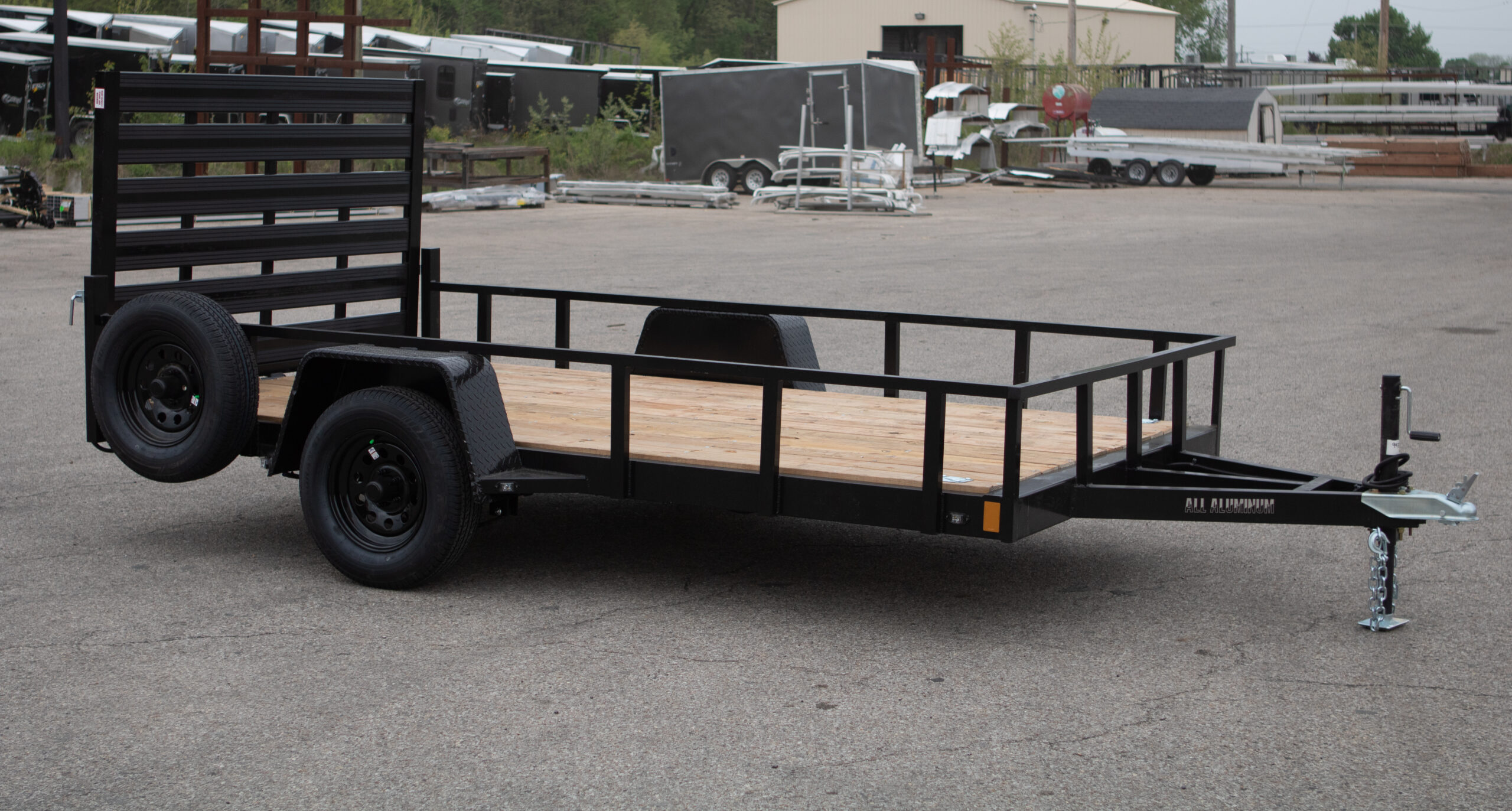

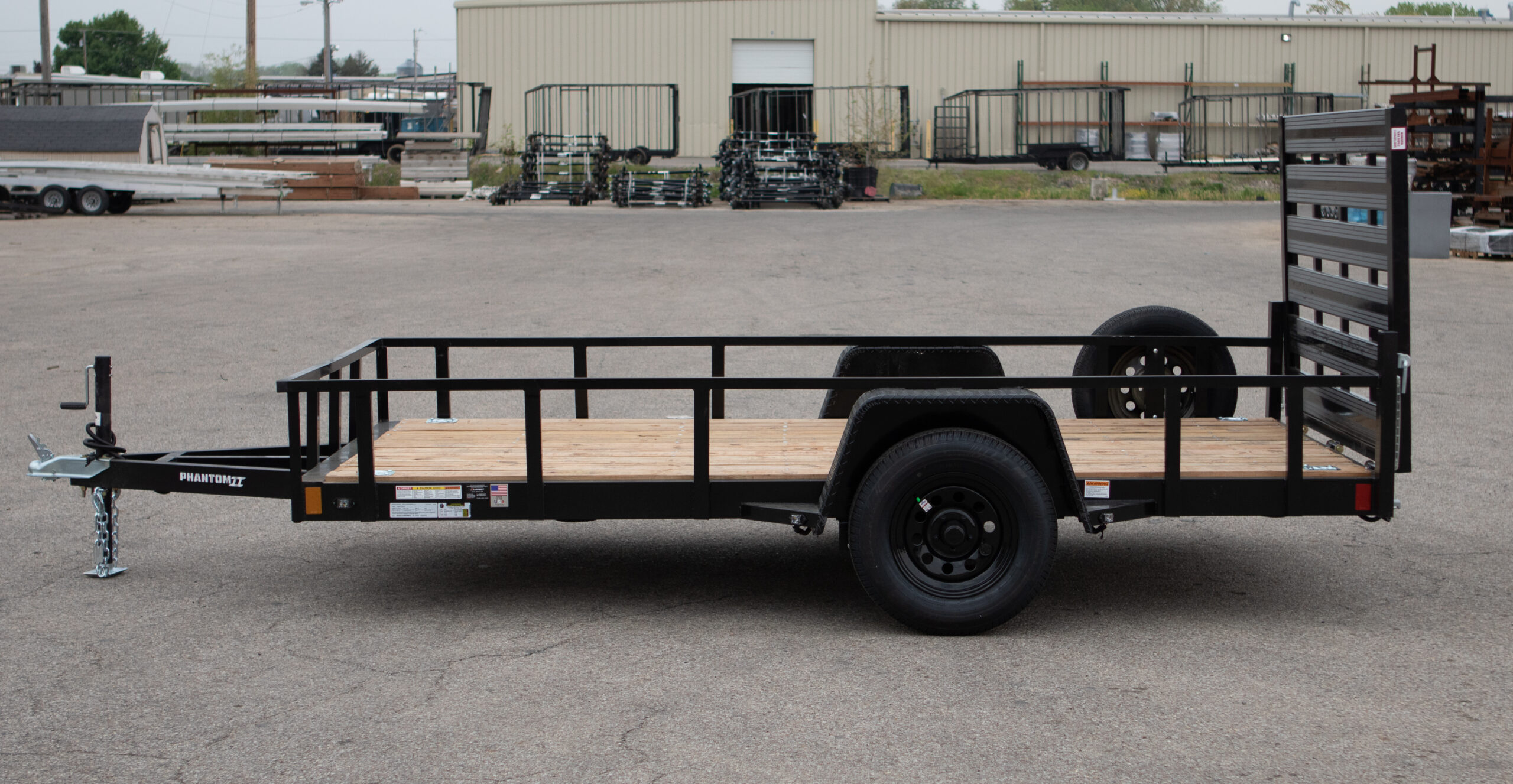

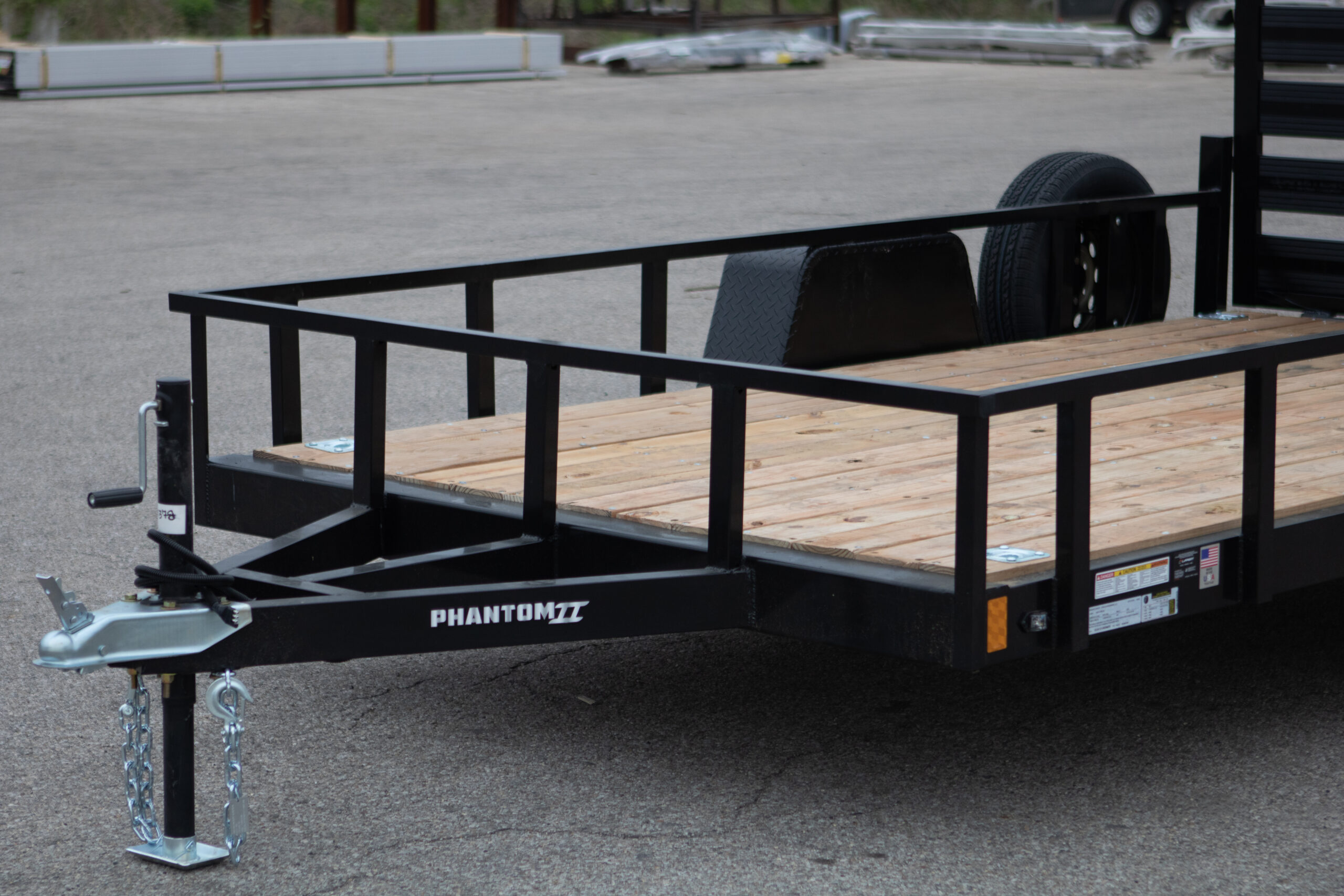

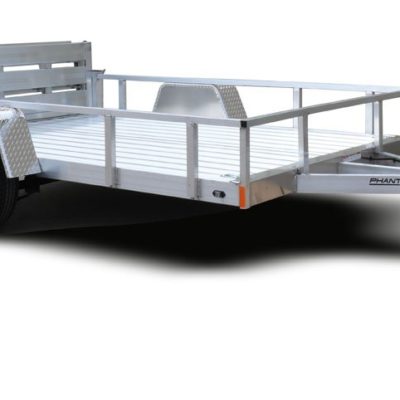

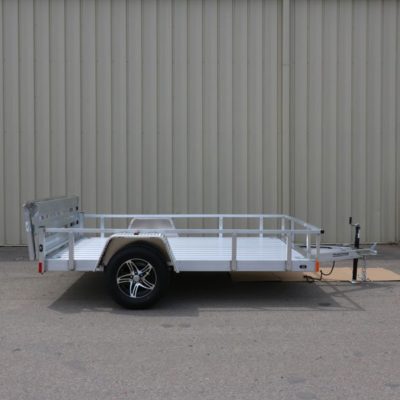

Phantom II
Here you’ll find superior quality in affordable aluminum open trailer hauling. Whether it’s cargo and you need an agile utility trailer, or you’re toting an automobile or UTV; Stealth has been manufacturing better looking, more functional and longer lasting open trailers.
Great looks and function without the high price of some all-aluminum open trailers. That’s what you’ll find with Phantom II, our utility models are designed for a variety of rugged hauling uses. Sturdy construction, lightweight and easy to tow, Stealth provides a 3-year warranty to keep you rolling down the road.
Standard Features
- 2″ x 5″ Tubular Aluminum Main Frame
- Triple 2″ x 4″ Tube A-Frame
- 24″ O/C Crossmembers
- 2″ Coupler With A-Frame on SA
- 2-5/16″ Coupler With A-Frame on TA
- 3500# Spring Axle/s
- Brake Drop Axles on TA
- Silver Modular Steel Wheels w/Radial Tires
- Chrome Center Caps
- (4) 5000# D-Rings (1 ea Corner)
- 2″ x 5″ Tubular Aluminum Main Frame
Specifications
| Phantom II | 5 X 8 SA | 5 X 10 SA | 6.5 X 10 SA | 6.5 X 12 SA | 6.5 X 14 SA | 6.5 X 14 TA | 6.5 X 16 TA | 6.5 X 18 TA | 6.5 X 20 TA |
|---|---|---|---|---|---|---|---|---|---|
| Overall Length | 11'-6" | 13'-6" | 13'-6" | 15'-6" | 17'-6" | 17'-6" | 19'-6" | 21'-6" | 23'-6" |
| Overall Width | 80" | 80" | 98" | 98" | 98" | 98" | 98" | 98" | 98" |
| * Overall Height | 5'-7" | 5'-7" | 5'-7" | 5'-7" | 5'-7" | 5'-7" | 5'-7" | 5'-7" | 5'-7" |
| Platform Height | 19" | 19" | 19" | 19" | 19" | 19" | 19" | 19" | 19" |
| Interior Height | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Interior Overall Length | 8'-0" | 10'-0" | 10'-0" | 12'-0" | 14'-0" | 14'-0" | 16'-0" | 18'-0" | 20'-0" |
| Interior Width | 60" | 60" | 78" | 78" | 78" | 78" | 78" | 78" | 78" |
| Between Wheel Wells | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Rear Door | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door W x H | 59" x 48" | 59" x 48" | 77" x 48" | 77" x 48" | 77" x 48" | 77" x 48" | 77" x 48" | 77" x 48" | 77" x 48" |
| Tongue Weight | 66 | 73 | 84 | 90 | 96 | 122 | 139 | 149 | 158 |
| Ball Size | 2" | 2" | 2" | 2" | 2" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" |
| G.A.W.R. (Each Axle) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| G.V.W.R. | 2990 | 2990 | 2990 | 2990 | 2990 | 6990 | 6990 | 6990 | 6990 |
| Curb Weight | 550 | 605 | 700 | 750 | 800 | 1015 | 1160 | 1240 | 1320 |
| Average Payload Capacity | 2440 | 2385 | 2290 | 2240 | 2190 | 5975 | 5830 | 5750 | 5670 |
| Brakes | None | None | None | None | None | Electric | Electric | Electric | Electric |
| Axles | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring |
| Tires | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC |
| Wheels | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod |
| Frame | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube |
| Floor | 2" x 6" Treated | 2" x 6" Treated | 2" x 6" Treated | 2" x 6" Treated | 2" x 6" Treated | 2" x 6" Treated | 2" x 6" Treated | 2" x 6" Treated | 2" x 6" Treated |
| Floor Crossmembers | 24" O/C | 24" O/C | 24" O/C | 24" O/C | 24" O/C | 24" O/C | 24" O/C | 24" O/C | 24" O/C |
* Note: Overall height does not include roof vents or A/C. Please add 4″ for roof vents & 13″ for A/C’s.
** Note: Platform Height drops 4″ with 48″ beavertail and drops 5″ with 72″ beavertail.
