Titan
Compare the Stealth Titan feature-for-feature to the competition and we crush them. For heavy-duty hauling and peace of mind, you won’t find a better value than our most popular model. Built with durability and longevity in mind, when you go with Stealth, you will remember the Titans.
Standard Features
- 2×3 Tube Steel Main Rails on 4w, 5w, & 6w SA
- 2×4 Tube Steel Main Rails on 6w TAÂ
- 2×5 Tube Steel Main Rails on 7w
- 2×6 Tube Steel Main Rails on 8.5w up to 28ft long
- 2×8 Tube Steel Main Rails on 8.5w x 30ft and longer
- 16″ O/C Floor C-Channel Crossmembers
- 16″ O/C Steel Tube Wall Studs
- 24″ O/C Tube Steel Roof Bows
- 48″ Tongue Length on 5w & 6w
- 54″ Tongue Length on 7w
- 60″ Tongue Length on 8.5w
- Triple Tube A-frame on 20′ & above
- 2,000# Drop Leg Jack
- Spring Axle w/4″ Drop
- Silver Radial Tires & Wheels w/Chrome Center Caps
- 4 Wide SA Models include 2000# Axles w/ST205/75R15 Tires
- SA/TA Models include 3500# Axles w/ST205/75R15 Tires
- TA3 & TTA3 Models include 5200# Axles w/ST225/75R15 Tires
- TA4 Models include 6000# Axles w/ST235/80R16 Tires
- Wide Track Axle/s on 7wide – No interior wheel wells
- Electric Brakes w/7-way Plug on TA & 7w SA
- 2″ Coupler on SA
- 2-5/16 Coupler on TA & 7w SA Models
- 4-Way Electrical Plug on SA Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
- 7-Way Electrical Plug on TA & SAE
- .030 Screwless Exterior Aluminum
- Plastic Corner Blocks on Top Trim
- (1) Pair Plastic Flo-Thru Vents
- Seamless Aluminum Flat Top Roof
- 3″ Flat Top Trim
- 3″ Flat Bottom Trim
- ATP Fenders
- 24″ Slanted Embossed Stone guard (16″ Straight on 4 wide)
- 24″ Slant Wedge on 5-6w Models
- 30″ Slant Wedge on 7w Models
- 36″ Slant Wedge on 8.5w Models
- 3/4″ Drymax Floor
- 3/8″ Drymax Walls
- No Side Door on 4w & 5w models
- 32W x 68H Side Door w/Barlock on 6w & 7w
- 48W x 78H Side Door w/Barlock on 8.5 wide models
- Aluminum Door Holdback
- Rear Ramp Door w/Flap & Spring Assist
- Stainless Steel Door Hardware
- Beavertail on 8.5×14 and above
- (4) 5000# Recessed D-Rings on 8.5×14 and above
- LED Marker Lights & LED Strip Tail Lights
- (2) 12V LED Dome Lights w/Switch (1 on 4 & 5 wide)
- Limited 3 Year Structural Warranty

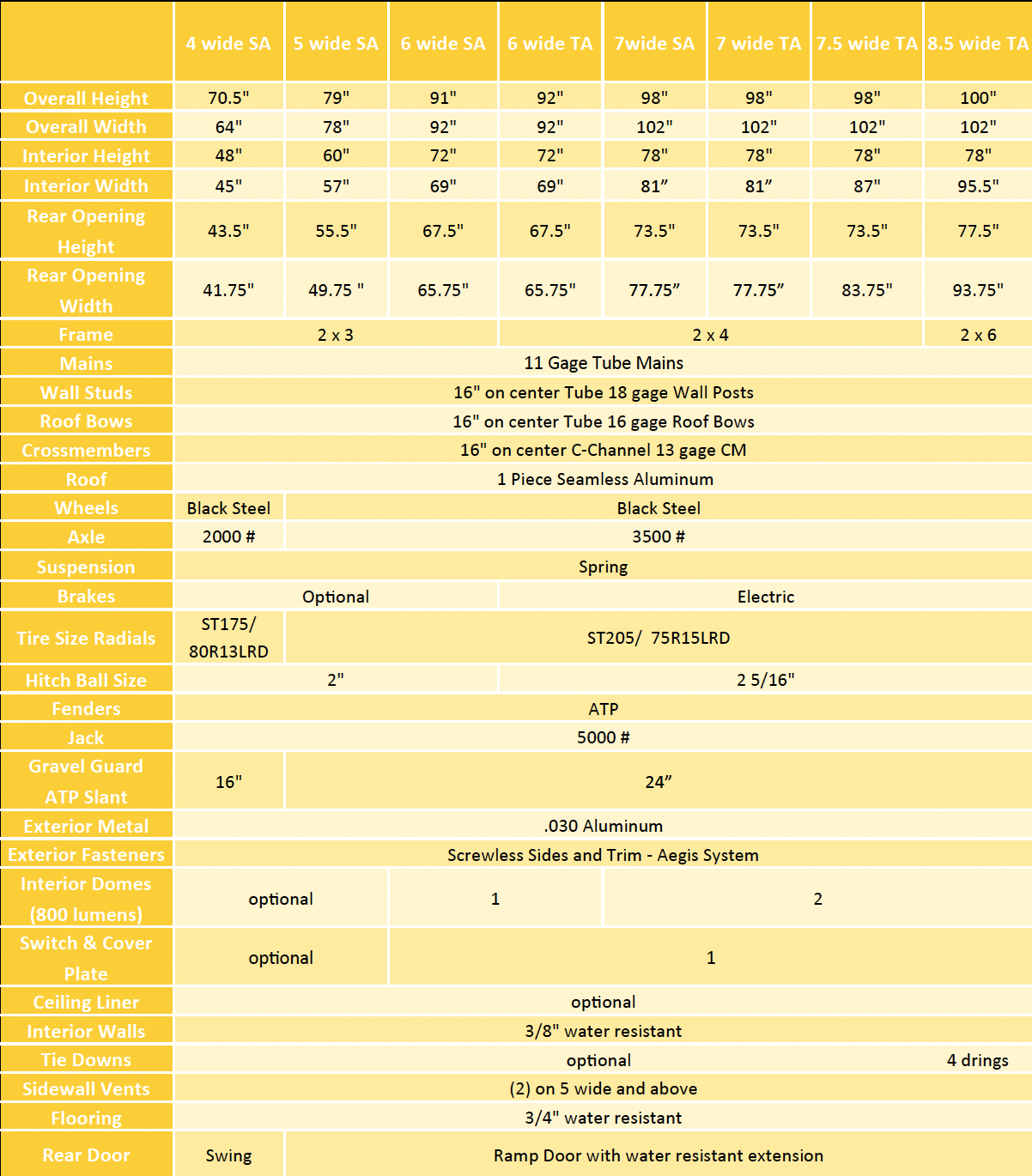

Specifications
Scroll to the right to see more trailer sizes
| Titan | 4 X 6 SA | 4 X 8 SA | 5 X 8 SA | 5 X 10 SA | 5 X 10 TA | 5 X 12 SA | 5 X 12 TA | 6 X 10 SA | 6 X 10 TA | 6 X 12 SA | 6 X 12 TA | 6 X 14 SA | 6 X 14 TA | 7 X 10 SAE | 7 X 10 TA | 7 X 12 SAE | 7 X 12 TA | 7 X 14 TA | 7 X 16 TA | 7 X 18 TA | 7 X 20 TA | 8.5 X 12 TA2 | 8.5 X 14 TA2 | 8.5 X 16 TA2 | 8.5 X 18 TA2 | 8.5 X 20 TA2 | 8.5 X 22 TA2 | 8.5 X 24 TA3 | 8.5 X 26 TA3 | 8.5 X 28 TA3 | 8.5 X 30 TA3 | 8.5 X 32 TTA3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Overall Length | 9'-8" | 11'-8" | 12'-0" | 14'-0" | 14'-0" | 16'-0" | 16'-0" | 14'-0" | 14'-0" | 16'-0" | 16'-0" | 18'-0" | 18'-0" | 14'-0" | 14'-0" | 16'-0" | 16'-0" | 18'-0" | 20'-0" | 22'-0" | 24'-0" | 17'-0" | 19'-0" | 21'-0" | 23'-0" | 25'-0" | 27'-0" | 29'-0" | 31'-0" | 33'-0" | 35'-0" | 37'-0" |
| Overall Width | 68" | 68" | 80" | 80" | 80" | 80" | 80" | 92" | 92" | 92" | 92" | 92" | 92" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" |
| * Overall Height | 5'-8" | 5'-8" | 6'-8" | 6'-8" | 6'-9" | 6'-8" | 6'-9" | 7'-8" | 7'-9" | 7'-8" | 7'-9" | 7'-9" | 7'-9" | 7'-10" | 7'-10" | 7'-10" | 7'-10" | 7'-10" | 7'-10" | 7'-10" | 7'-10" | 8'-5" | 8'-5" | 8'-5" | 8'-5" | 8'-5" | 8'-5" | 8'-5" | 8'-5" | 8'-5" | 8'-7" | 8'-7" |
| ** Platform Height | 18" | 18" | 18" | 18" | 19" | 18" | 19" | 18" | 19" | 18" | 19" | 19" | 19" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 21" | 21" | 21" | 21" | 21" | 21" | 21" | 21" | 21" | 23" | 23" |
| Interior Height | 4'-0" | 4'-0" | 5'-0" | 5'-0" | 5'-0" | 5'-0" | 5'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-0" | 6'-6" | 6'-6" | 6'-6" | 6'-6" | 6'-6" | 6'-6" | 6'-6" | 6'-6" | 6'-6" | 6'-6" | 6'-6" |
| Interior Overall Length | 7'-8" | 9'-8" | 9'-8" | 11'-8" | 11'-8" | 13'-8" | 13'-8" | 11'-8" | 11'-8" | 13'-8" | 13'-8" | 15'-8" | 15'-8" | 12'-2" | 12'-2" | 14'-2" | 14'-2" | 16'-2" | 18'-2" | 20'-2" | 22'-2" | 14'-2" | 16'-2" | 18'-2" | 20'-2" | 22'-2" | 24'-2" | 26'-2" | 28'-2" | 30'-2" | 32'-2" | 34'-2" |
| Interior Width | 45" | 45" | 57" | 57" | 57" | 57" | 57" | 69" | 69" | 69" | 69" | 69" | 69" | 81" | 81" | 81" | 81" | 81" | 81" | 81" | 81" | 96" | 96" | 96" | 96" | 96" | 96" | 96" | 96" | 96" | 96" | 96" |
| Between Wheel Wells | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 82" | 82" | 82" | 82" | 82" | 82" | 82" | 82" | 82" | 82" | 80" |
| Side Door | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Side Door W x H | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 68" | 32" x 78" | 32" x 78" | 32" x 78" | 32" x 78" | 32" x 78" | 32" x 78" | 32" x 78" | 32" x 78" | 32" x 78" | 32" x 78" | 32" x 78" |
| Rear Door | Single or Ramp | Single or Ramp | Single or Ramp | Single or Ramp | Single or Ramp | Single or Ramp | Single or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Double or Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door W x H | 42" x 44 1/2" | 42" x 44 1/2" | 54" x 56 1/2" | 54" x 56 1/2" | 54" x 56 1/2" | 54" x 56 1/2" | 54" x 56 1/2" | 66" x 68 1/2" | 66" x 68 1/2" | 66" x 68 1/2" | 66" x 68 1/2" | 66" x 68 1/2" | 66" x 68 1/2" | 78" x 68 1/2" | 78" x 68 1/2" | 78" x 68 1/2" | 78" x 68 1/2" | 78" x 68 1/2" | 78" x 68 1/2" | 78" x 68 1/2" | 78" x 68 1/2" | 94" x 74 1/2" | 94" x 74 1/2" | 94" x 74 1/2" | 94" x 74 1/2" | 94" x 78 1/2" | 94" x 78 1/2" | 94" x 78 1/2" | 94" x 78 1/2" | 94" x 78 1/2" | 94" x 79 1/2" | 94" x 79 1/2" |
| Tongue Weight | 52 | 64 | 90 | 104 | 134 | 119 | 146 | 129 | 200 | 142 | 212 | 154 | 238 | 174 | 191 | 187 | 218 | 242 | 267 | 293 | 320 | 297 | 312 | 327 | 342 | 348 | 363 | 378 | 419 | 434 | 461 | 514 |
| Ball Size | 2" | 2" | 2" | 2" | 2-5/16" | 2" | 2-5/16" | 2" | 2-5/16" | 2" | 2-5/16" | 2" | 2-5/16" | 2" | 2-5/16" | 2" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" | 2-5/16" |
| G.A.W.R. (Each Axle) | 2000 | 2000 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 5200 | 5200 | 5200 | 5200 | 5200 |
| G.V.W.R. | 2000 | 2000 | 2990 | 2990 | 6990 | 2990 | 6990 | 2990 | 6990 | 2990 | 6990 | 2990 | 6990 | 3500 | 6990 | 3500 | 6990 | 6990 | 6990 | 6990 | 6990 | 6990 | 6990 | 6990 | 6990 | 6990 | 6990 | 9990 | 9990 | 9990 | 9990 | 15240 |
| Curb Weight | 430 | 530 | 750 | 870 | 1120 | 995 | 1215 | 1075 | 1665 | 1180 | 1770 | 1285 | 1985 | 1450 | 1595 | 1555 | 1815 | 2020 | 2225 | 2445 | 2665 | 2475 | 2600 | 2725 | 2850 | 2900 | 3025 | 3150 | 3495 | 3620 | 3840 | 4280 |
| Average Payload Capacity | 1570 | 1470 | 2240 | 2120 | 5870 | 1995 | 5775 | 1915 | 5325 | 1810 | 5220 | 1705 | 5005 | 2050 | 5395 | 1945 | 5175 | 4970 | 4765 | 4545 | 4325 | 4515 | 4390 | 4265 | 4140 | 4090 | 3965 | 6840 | 6495 | 6370 | 6150 | 10960 |
| Brakes | None | None | None | None | Electric | None | Electric | None | Electric | None | Electric | None | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Axles | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring | 4" Drop Spring |
| Tires | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST205/75R15 LRC | ST225/75R15 LRD | ST225/75R15 LRD | ST225/75R15 LRD | ST225/75R15 LRD | ST225/75R15 LRD |
| Wheels | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod | Silver Mod |
| Frame | 2" x 3" Tube | 2" x 3" Tube | 2" x 3" Tube | 2" x 3" Tube | 2" x 4" Tube | 2" x 3" Tube | 2" x 4" Tube | 2" x 3" Tube | 2" x 4" Tube | 2" x 3" Tube | 2" x 4" Tube | 2" x 4" Tube | 2" x 4" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 6" Tube | 2" x 6" Tube | 2" x 6" Tube | 2" x 6" Tube | 2" x 6" Tube | 2" x 6" Tube | 2" x 6" Tube | 2" x 6" Tube | 2" x 6" Tube | 2" x 6" Tube | 2" x 6" Tube | 2" x 8" Tube | 2" x 8" Tube |
| Floor | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax | 3/4" Drymax |
| Walls | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax | 3/8" Drymax |
| Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling | Open Stud Ceiling |
| Floor Crossmembers | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel | 16" O/C C-Channel |
| Wall Posts | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube | 16" O/C Tube |
| Roof Bows | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube | 24" O/C Tube |
* Note: Overall height does not include roof vents or A/C. Please add 4″ for roof vents & 13″ for A/C’s.
** Note: Platform Height drops 4″ with 48″ beavertail and drops 5″ with 72″ beavertail.
