Yeah, we ride in the dirt. That’s why we built a better toy hauler trailer for motorsports enthusiasts. If you need more than one day to have your fun, Nomad features a great combination of vehicle garage, living quarters, and ample storage. From cars and Jeeps to motorcycles and side-by-sides; if you camp and ride, Nomad has the features you need. Rubberized flooring, a rear ramp door, and tie-downs make loading and unloading your toys simple. Indoor and outdoor showers, two convertible bed/couches, indoor/outdoor radio speakers, and a kitchen bring you full comfort between riding sessions.

Our Colors

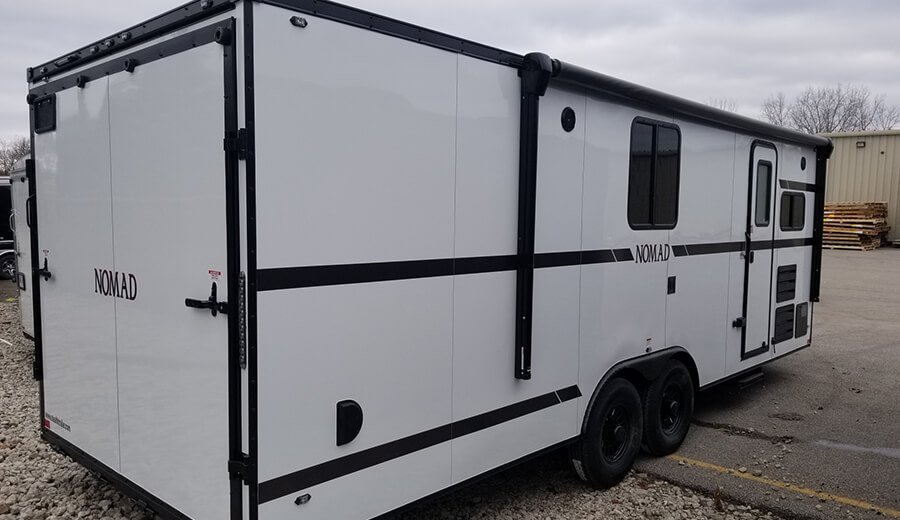

Polar White

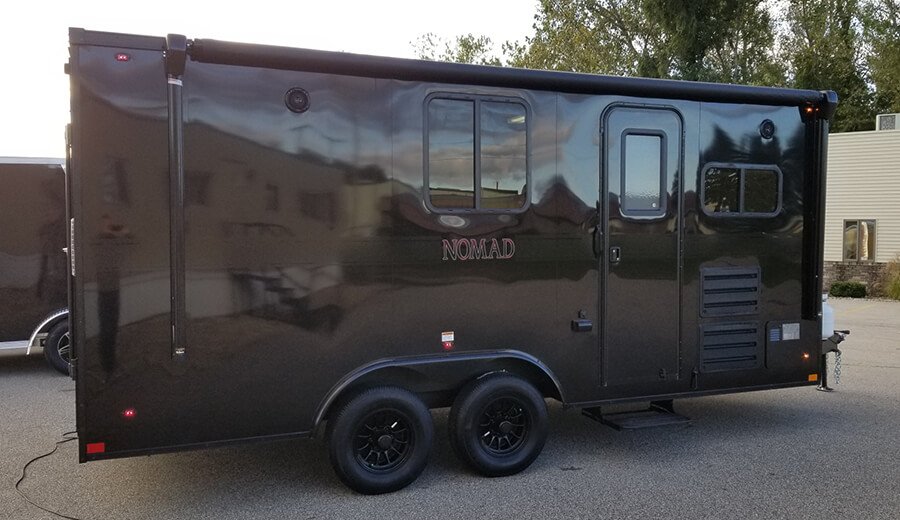

Black

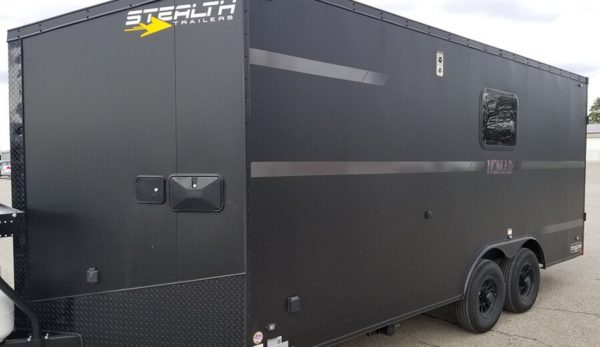

Matte Black

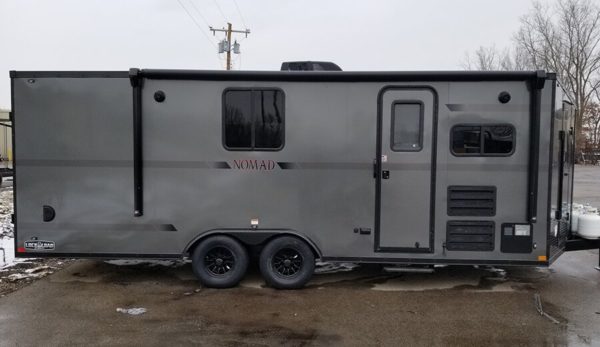

Metallic Charcoal

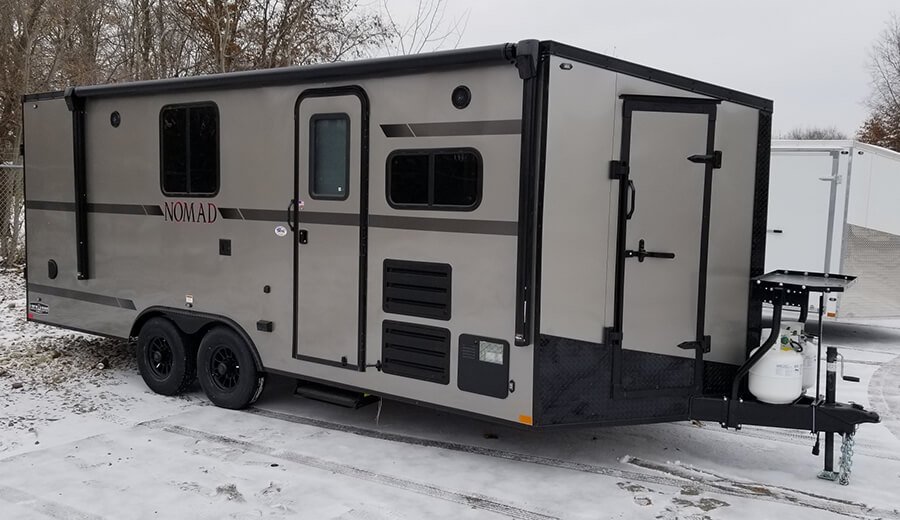

Pewter

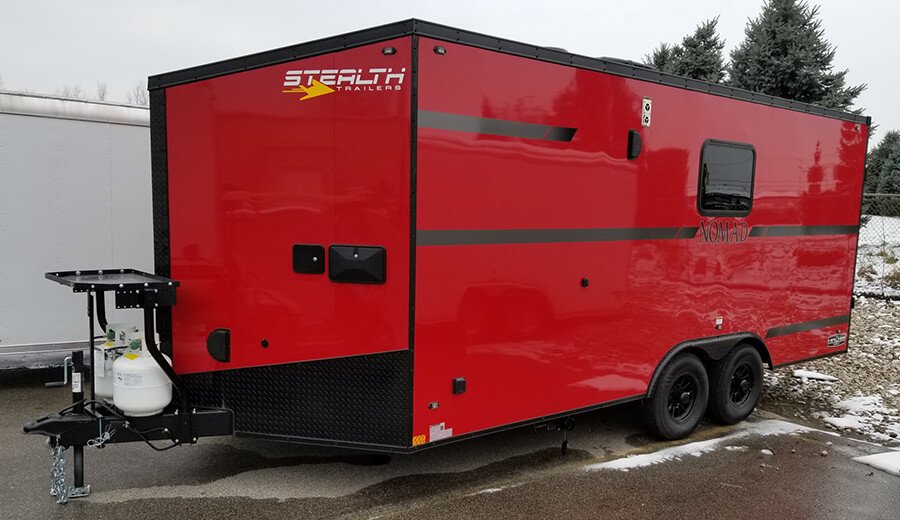

Victory Red

Gallery

Video

In The News

RV Review: Stealth Nomad—Built like a travel tank

By Tony Barthel

Options

68″ Wall Mount Sofa

Aluminum Star Wheels (5.2k, 6k, & 7k Axles)

Black Aluminum Rims, Lug Nuts, & Center Cap for 6-lug 15″ tires (5.2k axles)

Black Aluminum Rims, Lug Nuts, & Center Cap for 8-lug 16″ tires (6k & 7k axles)

Matching Spare Tires

Power Awnings w/Hardware & LED Light Kit

16ft
18ft
20ft

Beavertail

Black ATP Transition Flap

Two-Tone Exterior with Divider

Single or Double HappiJac Bed Lift System (includes mattress)

(2) 55″ Sofas for HappiJac System (Compatible with Double Lift System Only)

15,000 BTU Suburban Roof Air Conditioner

2nd 15,000 BTU Suburban Air Conditioner (50 Amp Service Required)

E-Track Recessed in Floor – (3) 10ft or 20ft sections

54″x 60″ Escape Door

30Amp Shore Cord

5K Electric Tongue Jack (standard)

Outdoor Shower

Termination Valve

Propane Tank Holder

Blacked Out Aluminum Wheels

Aluminum Star Wheels

FK Garage area

FK Furnace and TV

Nomad Shower and surround w/removable head

Nomad Microwave Oven

Rear Hide-A-Screen

Indoor/Outdoor Audio Speaker

5,000# D-Ring

FK Bathroom

12V Vent Fan

A/C Control Unit

FK Furnace Cabinet

FK Kitchen Area

Thermostat and 110V Light Switches

40″ L.E.D. Light Strip Mounted in Cove Molding

43″ TV and Swivel Bracket

Audio Control Unit

New FK Galley

QB Kitchen

QB Front Bedroom

Standard Features

7′ 6″ Interior Height
2″ x 6″ Tube Steel Main Rails (All Models Under 26′ )
2″ x 8″ Tube Steel Main Rails
16″ O/C Floor C-Channel Crossmembers (Under 26′ FK Models)
16″ O/C Floor Steel Tube Crossmembers **
16″ O/C Steel Tube Wall Studs
24″ O/C Tube Steel Roof Bows
18″ Extended Triple Tube A-frame
Lippert Torsion Axles
40″ Spread Axles (All Models over 22′)
5200# Axles w/Radial Tires on TA3
6000# Axles w/Radial Tires on TA4
7000# Axles w/Radial Tires on TA5
Electric Brakes
2-5/16″ A-Frame Coupler
4,000# Rated Rear Ramp Door w/Flap
5,000# Electric Tongue Jack
(2)Roof Vents in Living/Garage area
Prep & Wired for A/C
12V Roof Vent in Bathroom
Painted Tongue/Rear Sill Black
36″ Slant Wedge
Double Fold Out RV Step
(1) Pair Rear Stab Jacks

26″W x 78″H Radius Corner Deluxe RV Door w/Window & Screen
Aluminum Door Holdback
All Black Zinc Coated Door Hardware
24″W x 72″H Door w/Barlock in Front Storage
30″ x 15″ Window in Kitchen area
30″ x 30″ Window in Living/Garage area
30″ x 22″ Egress Window
Window Coverings in Garage Area

Seamless Aluminum Flat Top Roof
LED Marker Lights
Rear Flare w/(2) Loading Lights **

46 Gallon Fresh Water Tank (FK Models)
53 Gallon Fresh Water Tanks (DB, FB, QB Models)
43 Gallon Waste Holding Tank (FK Models)
(2) 43 Gallon Waste Holding Tanks (1 gray, 1 Black; DB, FB, QB Models)
Dual 20lb LP Bottles on A-Frame with Cover
6 Gallon DSI LP Gas / Electric Water Heater
12V Water Pump
City/Gravity Water Fill Hook Up
Outside Shower
RV Toilet
Medicine Cabinet
Robe Hooks
24″ x 36″ Shower w/Shower Curtain & Surround (FK, FB, QB Models)
32″x 32″ Radius Shower with Door and Surround (DB Model)
Drop-In Cook Top
Large Single Bowl Kitchen Sink
Refrigerator
Microwave Oven
Tank and Battery Monitor Panel

3/4″ Drymax Floor
ATP Rubber Floor Covering (not in wedge)
3/8″ White Vinyl Walls
White Vinyl Ceiling Liner w/Black Cove Molding
Black Kitchen Base Cabinet w/Aluminum C-top **
Black Kitchen Overhead Cabinet
5000# Recessed D-Rings (4, 6 or 8 Depending on Model)
Large Front Storage Area w/shelf

Black Steel Mod Wheels w/Radial Tires & Black Center Caps
Limited 3 Year Structural Warranty

.040″ Screwless Exterior Aluminum
Standard Colors: Polar White, Metallic Pewter, Black, Matte Black, Indigo Blue, Victory Red, Matte Red, Metallic Charcoal
3″ Heavy Duty Flat Top Trim
1-1/2″ Flat Bottom Trim
All Black Exterior Trim
ATP Fenders
24″ Tall Slanted Embossed Stone guard
6″ Barrier Tape
(1) Pair Black Aluminum Directional Sidewall Vents **

7-Way Electrical Plug
LED Strip Tailights
LED Marker Lights
12V Deluxe LED Lighting
45 Amp RV Power Center w/12V Converter
30 Amp Motorbase plug
Detachable Twistlock Power Cord
Battery Box Only (Battery not included)
110V GFI Receptacle in Kitchen area **
(2) 110V Receptacles with USB Ports
110V Receptacle in Garage area **
110V Exterior GFI Receptacle
35K BTU Furnace **
TV Prep Package (Includes: Coax Cable Outlets – Interior & Exterior, Omni-directional TV Antenna (UHF/VHF)
12V 40″ LED cove lights in Living/Garage Area **
Smoke & CO Detector
Fire Extinguisher

Packages

Platinum Nomad Package

Deluxe Stereo Package with Boss-Touchscreen Bluetooth AM/FM/CD/DVD/USB/MP3/WMA Capable Stereo, and (4) Hi-Output Weatherproof Speakers- (2) Interior & (2) Exterior
43″ TV with Swivel Bracket
Rear Hide-A-Screen
Solar Prep

Floor Plan

Specifications

2022 Nomad Front Kitchen	FK 18 Steel / Alum	FK 20 Steel / Alum	FK 22 Steel / Alum	FK 24 Steel / Alum	FK 26 Steel / Alum	FK 28 Steel / Alum	FK 30 Steel / Alum
Overall Length	24'-2”	26'-2”	28'-2”	30'-2”	32'-2”	34'-2”	36'-2”
Interior Length	20'-8”	22'-8”	24'-8”	26'-8”	28'-8”	30'-8”	32'-8”
Cargo Length	13'	15'	17'	19'	21'	23'	25'
Overall Height (Add 13” with AC)	9'-9”	9'-9”	9'-9”	9'-11”	9'-11”	10'-1”	10'-1”
Interior Height	7'-6”	7'-6”	7'-6”	7'-6”	7'-6”	7'-6”	7'-6”
Overall Width	102”	102”	102”	102”	102”	102”	102”
Interior Width	96”	96”	96”	96”	96”	96”	96”
Width Between Wheel Wells	82”	82”	82”	80”	80”	80”	80”
Unloaded Vehicle Weight Rating (UVWR)	5,995 # / 5,195 #	6,245 # / 5,435 #	6,495 # / 5,675 #	6,745 # / 5,915 #	6,995 # / 6,155 #	7,242 # / 6,395 #	7,495 # / 6,635 #
Gross Vehicle Weight Rating (GVWR)	9,990 #	9,990 #	9,990 #	12,000 #	12,000 #	14,000 #	14,000 #
Gross Axle Weight Rating (GAWR) X 2	5,200 #	5,200 #	5,200 #	6,000 #	6,000 #	7,000 #	7,000 #
Unloaded Tongue Weight	899 # / 779#	937 # / 815 #	974 # / 851 #	1,012 # / 887#	1,049 # / 923 #	1,086 # / 959 #	1,124 # / 995 #
Average Payload Capacity	3,995 / 4,795 #	3,745/ 4,555 #	3,495 / 4,315 #	5,255 / 6,085 #	5,005 / 5,845 #	6,758 / 7,605 #	6,505 / 7,365 #
Ramp Door Width & Height	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “
Platform / Ramp Height	25.25”	25.25”	25.25”	27.25”	27.25”	28.25”	28.25”
Tire Size / Load Range	ST225/75R15 LRD	ST225/75R15 LRD	ST225/75R15 LRD	ST235/80R16 LRE	ST235/80R16 LRE	ST235/80R16 LRE	ST235/80R16 LRE
Fresh Water Tank	46 Gallons	46 Gallons	46 Gallons	46 Gallons	46 Gallons	46 Gallons	46 Gallons
Grey Holding Tank	43 Gallons	43 Gallons	43 Gallons	43 Gallons	43 Gallons	43 Gallons	43 Gallons
Black Holding Tank	43 Gallons	43 Gallons	43 Gallons	43 Gallons	43 Gallons	43 Gallons	43 Gallons

2022 Nomad Front Bath	FB 22 Steel / Alum	FB 24 Steel / Alum	FB 26 Steel / Alum	FB 28 Steel / Alum	FB 30 Steel / Alum
Overall Length	28'-2'	30'-2”	32'-2”	34'-2”	36'-2”
Interior Length	24'-8”	26'-8”	28'-8”	30'-8”	32'-8”
Cargo Length	11'.5”	13'.5”	15'.5”	17'.5”	19'.5”
Overall Height (Add 13” with AC)	9'-9”	9'-11”	9'-11”	10”-1”	10'-1”
Interior Height	7'-6”	7'-6”	7'-6”	7'-6”	7'-6”
Overall Width	102”	102”	102”	102”	102”
Interior Width	96”	96”	96”	96”	96”
Width Between Wheel Wells	82”	80”	80”	80”	80”
Unloaded Vehicle Weight Rating (UVWR)	6,760 # / 5,940 #	7,230 # / 6,400 #	7,480 # / 6,640#	7,730 # / 6,880 #	7,980 # / 7,120 #
Gross Vehicle Weight Rating (GVWR)	9,990 #	12,000 #	12,000 #	14,000 #	14,000 #
Gross Axle Weight Rating (GAWR) X 2	5,200 #	6,000 #	6,000 #	7,000 #	7,000 #
Unloaded Tongue Weight	1,014 # / 891 #	1,085 #/ 960 #	1,122 # / 996 #	1,160 # / 1,032 #	1,197 # /1,068
Average Payload Capacity	3,230 # / 4,050 #	4,770 # / 5,600 #	4,520 # / 5,360 #	6,270 # / 7,120 #	6,020 # / 6,880 #
Ramp Door Width & Height	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “
Platform / Ramp Height	25.25”	27.25”	27.25”	28.25”	28.25”
Tire Size / Load Range	ST225/75R15 LRD	ST235/80R16 LRE	ST235/80R16 LRE	ST235/80R16 LRE	ST235/80R16 LRE
Fresh Water Tank	53 Gallons	53 Gallons	53 Gallons	53 Gallons	53 Gallons
Grey Holding Tank	43 Gallons	43 Gallons	43 Gallons	43 Gallons	43 Gallons
Black Holding Tank	43 Gallons	43 Gallons	43 Gallons	43 Gallons	43 Gallons

2022 Nomad Double Bunk	DB 24 Steel / Alum	DB 26 Steel / Alum	DB 28 Steel / Alum	DB 30 Steel / Alum
Overall Length	30'-2”	32'-2”	34'-2”	36'-2”
Interior Length	26'-8”	28'-8”	30'-8”	32'-8”
Cargo Length	10'.8”	12'.8”	14'.8”	16'.8”
Overall Height (Add 13” with AC)	9'11”	9'.11”	10'-1”	10'-1”
Interior Height	7'-6”	7'-6”	7'-6”	7'-6”
Overall Width	102”	102”	102”	102”
Interior Width	96”	96”	96”	96”
Width Between Wheel Wells	80”	80”	80”	80”
Unloaded Vehicle Weight Rating (UVWR)	7,445 # / 6,615 #	7,695 # / 6,855 #	7,945 # / 7,095#	8,195 # / 7,335 #
Gross Vehicle Weight Rating (GVWR)	12,000 #	12,000 #	14,000 #	14,000 #
Gross Axle Weight Rating (GAWR) X 2	6,000 #	6,000 #	7,000 #	7,000 #
Unloaded Tongue Weight	1,117 # / 992 #	1,154 # / 1,028	1,192 # / 1,064	1,229 # / 1,100 #
Average Payload Capacity	4,555 # / 5,385 #	4,305 # / 5,145 #	6,055 # / 6,905 #	5,805 # / 6,665 #
Ramp Door Width & Height	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “
Platform / Ramp Height	27.25”	27.25”	28.25”	28.25”
Tire Size / Load Range	ST235/80R16 LRE	ST235/80R16 LRE	ST235/80R16 LRE	ST235/80R16 LRE
Fresh Water Tank	53 Gallons	53 Gallons	53 Gallons	53 Gallons
Grey Holding Tank	43 Gallons	43 Gallons	43 Gallons	43 Gallons
Black Holding Tank	43 Gallons	43 Gallons	43 Gallons	43 Gallons

2022 Nomad Queen Bed	QB 24 Steel / Alum	QB 26 Steel / Alum	QB 28 Steel / Alum	QB 30 Steel / Alum
Overall Length	30'-2”	32'-2”	34'-2”	36'-2”
Interior Length	26'-8”	28'-8”	30'-8”	32'-8”
Cargo Length	10'	12'	14'	16'
Overall Height (Add 13” with AC)	9'11”	9'.11”	10.1”	10.1”
Interior Height	7'-6”	7'-6”	7'-6”	7'-6”
Overall Width	102”	102”	102”	102”
Interior Width	96”	96”	96”	96”
Width Between Wheel Wells	80”	80”	80”	80”
Unloaded Vehicle Weight Rating (UVWR)	7,780 # / 6,950 #	8,030 # / 7,190 #	8,280 # / 7,430#	8,530 # / 7,670 #
Gross Vehicle Weight Rating (GVWR)	12,000 #	12,000 #	14,000 #	14,000 #
Gross Axle Weight Rating (GAWR) X 2	6,000 #	6,000 #	7,000 #	7,000 #
Unloaded Tongue Weight	1,167 # / 1,043 #	1,205 # / 1,079 #	1,242 # / 1,115 #	1,280 # / 1,151 #
Average Payload Capacity	4,220 # / 5,050 #	3,970 # / 4,810 #	5,720 # / 6,570 #	5,470 # / 6,330 #
Ramp Door Width & Height	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “	94” x 80.5 “
Platform / Ramp Height	27.25”	27.25”	28.25”	28.25”
Tire Size / Load Range	ST235/80R16 LRE	ST235/80R16 LRE	ST235/80R16 LRE	ST235/80R16 LRE
Fresh Water Tank	53 Gallons	53 Gallons	53 Gallons	53 Gallons
Grey Holding Tank	43 Gallons	43 Gallons	43 Gallons	43 Gallons
Black Holding Tank	43 Gallons	43 Gallons	43 Gallons	43 Gallons

* Note: Overall height does not include roof vents or A/C. Please add 4″ for roof vents & 13″ for A/C’s.

** Note: Platform Height drops 4″ with 48″ beavertail and drops 5″ with 72″ beavertail.

Stealth Enterprises, LLC reserves the right to make changes to product offerings without notice or obligation. Standard equipment, options, specifications, materials, and other items listed on websites and printed materials are accurate at the time of publication. Some photographs may show optional items available at additional cost. Some specifications listed may be estimates. Consult your local authorized Stealth Trailer dealer for the most updated models, specifications, and pricing.
