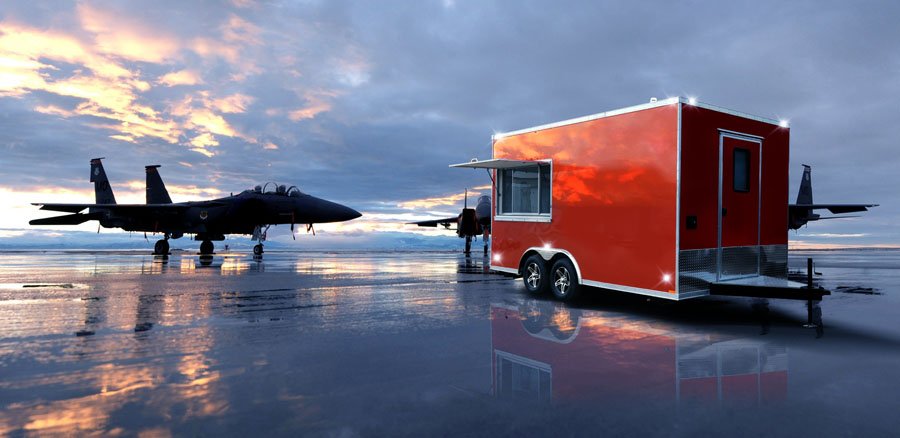

Liberty

Our most versatile line of cargo trailers. Liberty models come in traditional round top, round top wedge and flat top wedge models. All tube construction makes the Liberty models the best choice for landscape, construction, concession, vendor and any other heavy rugged use. Pictured here is a round top with a round front.

The Liberty model comes with standard silver powder-coated modular wheels, ATP aluminum fenders, spring axles, 32” in-house built RV side door on 6’ wide and above, interior lights, stoneguard and more. The Liberty cargo trailer is popular with commercial vendors and business owners. Tube steel main frame with 16” O.C. tube wall posts and floor crossmembers along with 24” O.C. tube roof bows add durability.

Standard Features

  • 2″ x 3″ Tube Steel Main Rails on 4’w, 5’w, & 6’w SA
  • 2″ x 4″ Tube Steel Main Rails on 6’w TA
  • 2″ x 5″ Tube Steel Main Rails on 7’w
  • 2″ x 6″ Tube Steel Main Rails on 8.5’w up to 28′ long
  • 2″ x 8″ Tube Steel Main Rails on 8.5’w x 30′ and longer
  • 16″ O/C Floor C-Channel Crossmembers
  • 16″ O/C Steel Tube Wall Studs
  • 24″ O/C Tube Steel Roof Bows
  • Triple Tube A-frame on 20′ & above
  • Lippert Spring Axle w/4″ Drop
  • Silver Radial Tires & Wheels w/Chrome Center Caps
  • 4′ Wide SA Models include 2000# Axles w/Radial Tires
  • SA/TA Models include 3500# Axles w/Radial Tires
  • TA3 & TTA3 Models include 5200# Axles w/Radial Tires
  • TA4 Models include 6000# Axles w/Radial Tires
  • Wide Track Axle/s on 7′ wide – No interior wheel wells
  • Electric Brakes w/7-way Plug on 7′ wide Single Axles
  • 2″ Coupler on SA
  • 2-5/16″ Coupler on TA
  • 4-Way Electrical Plug on SA, 7-Way on TA
  • Frame for Roof Vent
  • Painted Tongue/Rear Sill Black
  • 6″ Barrier Tape
  • .030″ Screwless Exterior Aluminum
  • (1) Pair Plastic Flo-Thru Vents
  • Seamless Aluminum Round Top Roof
  • Fiberglass Front Cap (Black or White)
  • Colored Metal Exterior Cove
  • 1-1/2″ Flat Bottom Trim
  • ATP Fenders
  • 24″ Tall Embossed Stoneguard (18″ on 4’w)
  • Round Front
  • 3/4″ Drymax Floor
  • 3/8″ Drymax Walls
  • No Side Door on 4′ & 5′ Wide Models
  • 32″W x 62″H Side Door w/Barlock on 6′ & 7′ Wide Models
  • 48″W x 72″H Side Door w/Barlock on 8.5′ Wide Models
  • Aluminum Door Holdback
  • Rear Ramp Door w/Flap
  • Zinc Coated Door Hardware
  • Beavertail on 8.5′ x 20′ and above
  • (4) 5000# Recessed D-Rings on 8.5′ x 20′ and above
  • (2) 12V LED Dome Lights w/Switch (1 on 4′ & 5′ wide models)
  • LED Marker Lights and LED Strip Tailights
  • DOT/CSA Approved Safety Equipment
  • Limited 3 Year Structural Warranty

Specifications

Scroll to the right to see more trailer sizes

4 X 6 SA 4 X 8 SA 5 X 8 SA 5 X 10 SA 5 X 10 TA 5 X 12 SA 5 X 12 TA 6 X 8 SA 6 X 10 SA 6 X 10 TA 6 X 12 SA 6 X 12 TA 6 X 14 SA 6 X 14 TA 7 X 10 SAE 7 X 10 TA 7 X 12 SAE 7 X 12 TA 7 X 14 TA 7 X 16 TA 7 X 18 TA 7 X 20 TA 8.5 X 12 TA2 8.5 X 14 TA2 8.5 X 16 TA2 8.5 X 18 TA2 8.5 X 20 TA2 8.5 X 22 TA2 8.5 X 24 TA2 8.5 X 26 TA3 8.5 X 28 TA3 8.5 X 30 TA3 8.5 X 32 TTA3
Overall Length 10′-0″ 12′-0″ 12′-0″ 14′-0″ 14′-0″ 16′-0″ 16′-0″ Overall Length 12′-0″ 14′-0″ 14′-0″ 16′-0″ 16′-0″ 18′-0″ 18′-0″ Overall Length 14′-0″ 14′-0″ 16′-0″ 16′-0″ 18′-0″ 20′-0″ 22′-0″ Overall Length 24′-0″ 16′-6″ 18′-6″ 20′-6″ 22′-6″ 24′-6″ 26′-6″ Overall Length 28′-6″ 30′-6″ 32′-6″ 34′-6″ 36′-6″
Overall Width 68″ 68″ 80″ 80″ 80″ 80″ 80″ Overall Width 92″ 92″ 92″ 92″ 92″ 92″ 92″ Overall Width 102″ 102″ 102″ 102″ 102″ 102″ 102″ Overall Width 102″ 102″ 102″ 102″ 102″ 102″ 102″ Overall Width 102″ 102″ 102″ 102″ 102″
* Overall Height 5′-10″ 5′-10″ 6′-10″ 6′-10″ 6′-10″ 6′-10″ 6′-10″ * Overall Height 7′-10″ 7′-10″ 7′-11″ 7′-10″ 7′-11″ 7′-10″ 7′-11″ * Overall Height 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ 8′-1″ * Overall Height 8′-2″ 8′-9″ 8′-9″ 8′-9″ 8′-9″ 8′-9″ 8′-9″ * Overall Height 8′-9″ 8′-9″ 8′-9″ 8′-11″ 8′-11″
** Platform Height 18″ 18″ 18″ 18″ 18″ 18″ 18″ ** Platform Height 18″ 18″ 19″ 18″ 19″ 18″ 19″ ** Platform Height 20″ 20″ 20″ 20″ 20″ 20″ 20″ ** Platform Height 21″ 21″ 21″ 21″ 21″ 21″ 21″ ** Platform Height 21″ 21″ 21″ 23″ 23″
Interior Height 4′-0″ 4′-0″ 5′-0″ 5′-0″ 5′-0″ 5′-0″ 5′-0″ Interior Height 6′-0″ 6′-0″ 6′-0″ 6′-0″ 6′-0″ 6′-0″ 6′-0″ Interior Height 6′-0″ 6′-0″ 6′-0″ 6′-0″ 6′-0″ 6′-0″ 6′-0″ Interior Height 6′-0″ 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″ Interior Height 6′-6″ 6′-6″ 6′-6″ 6′-6″ 6′-6″
Interior Overall Length 6′-5″ 8′-5″ 8′-5″ 10′-5″ 10′-5″ 12′-5″ 12′-5″ Interior Overall Length 8′-5″ 10′-5″ 10′-5″ 12′-5″ 12′-5″ 14′-5″ 14′-5″ Interior Overall Length 10′-5″ 10′-5″ 12′-5″ 12′-5″ 14′-5″ 16′-5″ 18′-5″ Interior Overall Length 20′-5″ 12′-6″ 14′-6″ 16′-6″ 18′-6″ 20′-6″ 22′-6″ Interior Overall Length 24′-6″ 26′-6″ 28′-6″ 30′-6″ 32′-6″
Interior Width 45″ 45″ 57″ 57″ 57″ 57″ 57″ Interior Width 69″ 69″ 69″ 69″ 69″ 69″ 69″ Interior Width 81″ 81″ 81″ 81″ 81″ 81″ 81″ Interior Width 81″ 96″ 96″ 96″ 96″ 96″ 96″ Interior Width 96″ 96″ 96″ 96″ 96″
Between Wheel Wells N/A N/A N/A N/A N/A N/A N/A Between Wheel Wells N/A N/A N/A N/A N/A N/A N/A Between Wheel Wells N/A N/A N/A N/A N/A N/A N/A Between Wheel Wells N/A 82″ 82″ 82″ 82″ 82″ 82″ Between Wheel Wells 82″ 82″ 82″ 82″ 80″
Side Door Optional Optional Optional Optional Optional Optional Optional Side Door Standard Standard Standard Standard Standard Standard Standard Side Door Standard Standard Standard Standard Standard Standard Standard Side Door Standard Standard Standard Standard Standard Standard Standard Side Door Standard Standard Standard Standard Standard
Side Door W x H N/A N/A N/A N/A N/A N/A N/A Side Door W x H 32″ x 62″ 32″ x 62″ 32″ x 62″ 32″ x 62″ 32″ x 62″ 32″ x 62″ 32″ x 62″ Side Door W x H 32″ x 62″ 32″ x 62″ 32″ x 62″ 32″ x 62″ 32″ x 62″ 32″ x 62″ 32″ x 62″ Side Door W x H 32″ x 62″ 32″ x 72″ 32″ x 72″ 32″ x 72″ 32″ x 72″ 32″ x 72″ 32″ x 72″ Side Door W x H 32″ x 72″ 32″ x 72″ 32″ x 72″ 32″ x 72″ 32″ x 72″
Rear Door Single or Ramp Single or Ramp Single or Ramp Single or Ramp Single or Ramp Single or Ramp Single or Ramp Rear Door Double or Ramp Double or Ramp Double or Ramp Double or Ramp Double or Ramp Double or Ramp Double or Ramp Rear Door Double or Ramp Double or Ramp Double or Ramp Double or Ramp Double or Ramp Double or Ramp Double or Ramp Rear Door Double or Ramp Double or Ramp Double or Ramp Double or Ramp Double or Ramp Ramp Ramp Rear Door Ramp Ramp Ramp Ramp Ramp
Rear Door W x H 42″ x 44 1/2″ 42″ x 44 1/2″ 54″ x 56 1/2″ 54″ x 56 1/2″ 54″ x 56 1/2″ 54″ x 56 1/2″ 54″ x 56 1/2″ Rear Door W x H 66″ x 68 1/2″ 66″ x 68 1/2″ 66″ x 68 1/2″ 66″ x 68 1/2″ 66″ x 68 1/2″ 66″ x 68 1/2″ 66″ x 68 1/2″ Rear Door W x H 78″ x 68 1/2″ 78″ x 68 1/2″ 78″ x 68 1/2″ 78″ x 68 1/2″ 78″ x 68 1/2″ 78″ x 68 1/2″ 78″ x 68 1/2″ Rear Door W x H 78″ x 68 1/2″ 94″ x 74 1/2″ 94″ x 74 1/2″ 94″ x 74 1/2″ 94″ x 74 1/2″ 94″ x 78 1/2″ 94″ x 78 1/2″ Rear Door W x H 94″ x 78 1/2″ 94″ x 78 1/2″ 94″ x 78 1/2″ 94″ x 79 1/2″ 94″ x 79 1/2″
Tongue Weight 53 65 94 104 131 115 195 Tongue Weight 116 129 187 142 212 154 238 Tongue Weight 162 195 199 218 242 267 292 Tongue Weight 316 249 274 327 342 348 416 Tongue Weight 418 478 499 598 651
Ball Size 2″ 2″ 2″ 2″ 2-5/16″ 2″ 2-5/16″ Ball Size 2″ 2″ 2-5/16″ 2″ 2-5/16″ 2″ 2-5/16″ Ball Size 2″ 2-5/16″ 2″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ Ball Size 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ Ball Size 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″ 2-5/16″
G.A.W.R. (Each Axle) 2000 2000 3500 3500 3500 3500 3500 G.A.W.R. (Each Axle) 3500 3500 3500 3500 3500 3500 3500 G.A.W.R. (Each Axle) 3500 3500 3500 3500 3500 3500 3500 G.A.W.R. (Each Axle) 3500 3500 3500 3500 3500 3500 3500 G.A.W.R. (Each Axle) 3500 5200 5200 5200 5200
G.V.W.R. 2000 2000 2990 2990 6990 2990 6990 G.V.W.R 2990 2990 6990 2990 6990 2990 6990 G.V.W.R 3500 6990 3500 6990 6990 6990 6990 G.V.W.R 6990 6990 6990 6990 6990 6990 6990 G.V.W.R 6990 9990 9990 9990 15240
Curb Weight 440 540 780 870 1090 960 1625 Curb Weight 970 1075 1560 1180 1770 1285 1985 Curb Weight 1350 1625 1660 1815 2020 2225 2430 Curb Weight 2635 2078 2284 2725 2850 2900 3464 Curb Weight 3480 3980 4162 4985 5425
Average Payload Capacity 1560 1460 2210 2120 5900 2030 5365 Average Payload Capacity 2020 1915 5430 1810 5220 1705 5005 Average Payload Capacity 2150 5365 1840 5175 4970 4765 4560 Average Payload Capacity 4355 4912 4706 4265 4140 4090 3526 Average Payload Capacity 3510 6010 5828 5005 9815
Brakes None None None None Electric None Electric Brakes None None Electric None Electric None Electric Brakes Electric Electric Electric Electric Electric Electric Electric Brakes Electric Electric Electric Electric Electric Electric Electric Brakes Electric Electric Electric Electric Electric
Axles 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring Axles 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring Axles 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring Axles 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring Axles 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring 4″ Drop Spring
Tires Radial Radial Radial Radial Radial Radial Radial Tires Radial Radial Radial Radial Radial Radial Radial Tires Radial Radial Radial Radial Radial Radial Radial Tires Radial Radial Radial Radial Radial Radial Radial Tires Radial Radial Radial Radial Radial
Wheels Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Wheels Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Wheels Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Wheels Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Wheels Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod
Frame 2″ x 3″ Tube 2″ x 3″ Tube 2″ x 3″ Tube 2″ x 3″ Tube 2″ x 4″ Tube 2″ x 3″ Tube 2″ x 4″ Tube Frame 2″ x 3″ Tube 2″ x 3″ Tube 2″ x 4″ Tube 2″ x 3″ Tube 2″ x 4″ Tube 2″ x 3″ Tube 2″ x 4″ Tube Frame 2″ x 5″ Tube 2″ x 5″ Tube 2″ x 5″ Tube 2″ x 5″ Tube 2″ x 5″ Tube 2″ x 5″ Tube 2″ x 6″ Tube Frame 2″ x 6″ Tube 2″ x 6″ Tube 2″ x 6″ Tube 2″ x 6″ Tube 2″ x 6″ Tube 2″ x 6″ Tube 2″ x 6″ Tube Frame 2″ x 6″ Tube 2″ x 6″ Tube 2″ x 6″ Tube 2″ x 8″ Tube 2″ x 8″ Tube
Floor 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax Floor 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax Floor 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax Floor 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax Floor 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax 3/4″ Drymax
Walls 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax Walls 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax Walls 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax Walls 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax Walls 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax 3/8″ Drymax
Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling
Floor Crossmembers 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel Floor Crossmembers 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel Floor Crossmembers 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel Floor Crossmembers 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel Floor Crossmembers 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel 16″ O/C C-Channel
Wall Posts 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube Wall Posts 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube Wall Posts 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube Wall Posts 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube Wall Posts 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube 16″ O/C Tube
Roof Bows 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube Roof Bows 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube Roof Bows 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube Roof Bows 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube Roof Bows 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube 24″ O/C Tube

* Note: Overall height does not include roof vents or A/C. Please add 4″ for roof vents & 13″ for A/C’s.

** Note: Platform Height drops 4″ with 48″ beavertail and drops 5″ with 72″ beavertail.

Stealth Enterprises, LLC reserves the right to make changes to product offerings without notice or obligation. Standard equipment, options, specifications, materials, and other items listed on websites and printed materials are accurate at the time of publication. Some photographs may show optional items available at additional cost. Some specifications listed may be estimates. Consult your local authorized Stealth Trailer dealer for the most updated models, specifications, and pricing.
