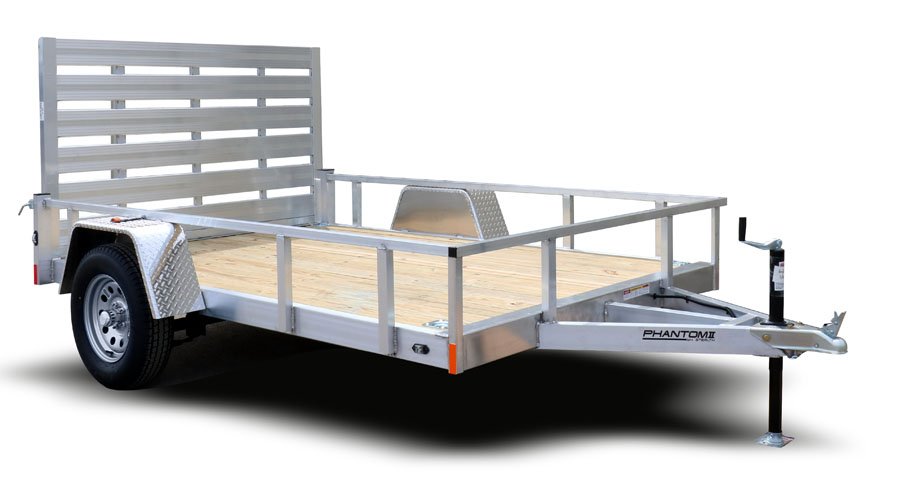

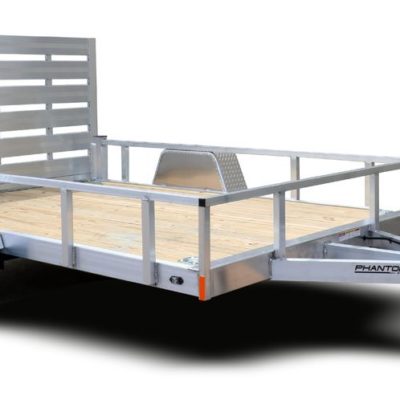

Phantom I

Here you’ll find superior quality in affordable aluminum open trailer hauling. Whether it’s cargo and you need an agile utility trailer, or you’re toting an automobile or UTV; Stealth has been manufacturing better looking, more functional and longer lasting open trailers.

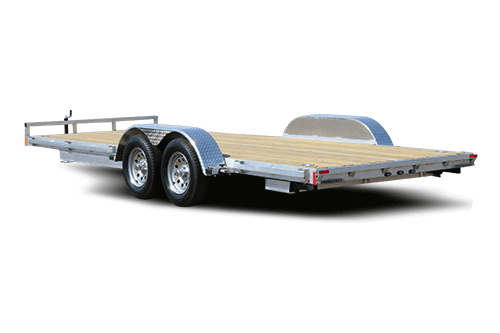

The Phantom I series is designated as our auto hauler line. The larger sizes are capable of transporting full size automobiles, while shorter sized units are ideal for smaller vehicles. Tie-downs, side ramps, or flooring options are available to meet your needs. Trust your auto hauling to Stealth’s reputation for quality.

Standard Features

  • 2″ x 5″ Double Hollow Tubular Aluminum Main Frame
  • 2″ x 5″ Double Hollow Tubular Aluminum A-Frame
  • Triple Tube A-Frame
  • 16″ O/C Crossmembers
  • 2-5/16″ Coupler
  • 3500# Torsion Axles w/Brakes
  • Sliver Modular Steel Wheels w/Radial Tires
  • Chrome Center Caps
  • ATP Removable Fenders
  • 7 Way Electrical Plug
  • DOT Approved Safety Equipment
  • LED Marker and Strip Tail Lights
  • 2″ x 6″ Treated Lumber Decking

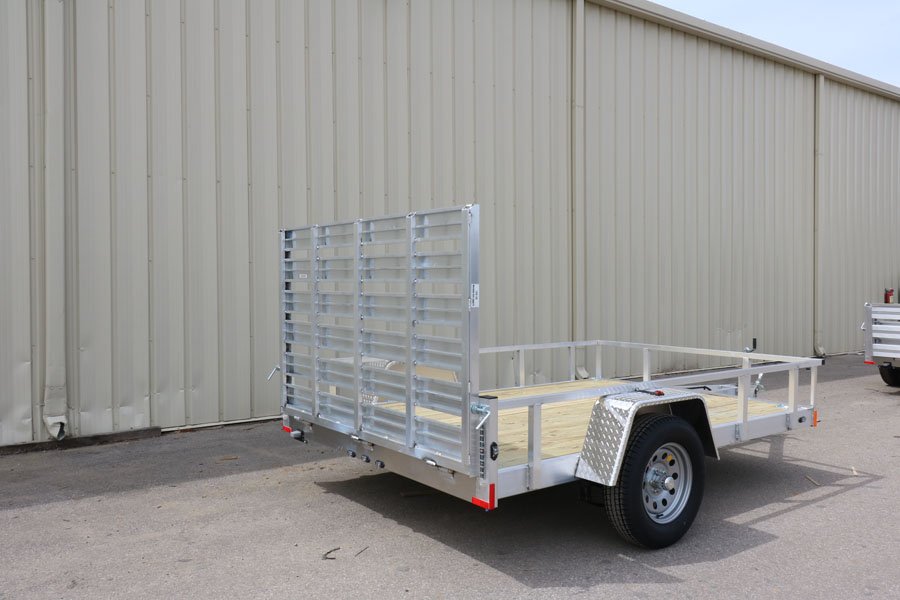

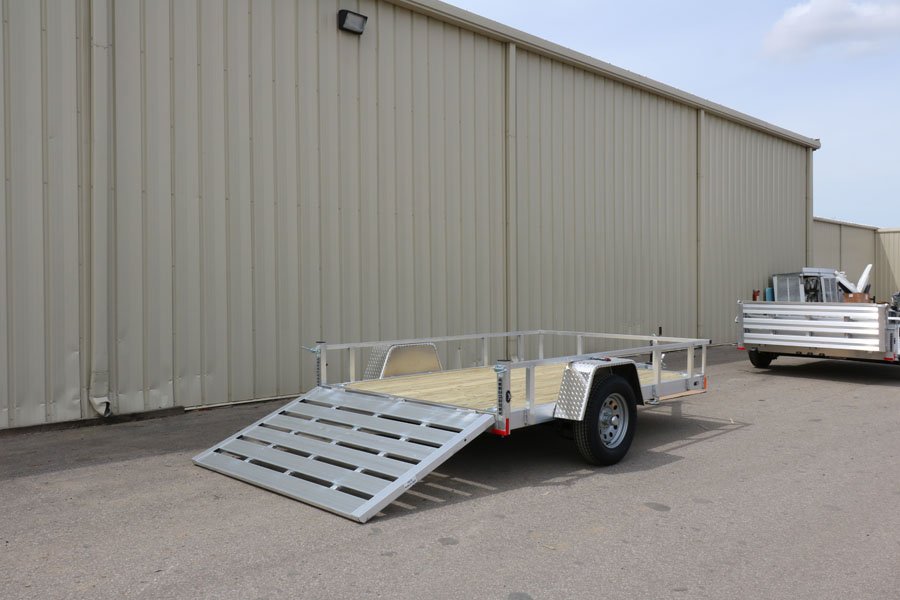

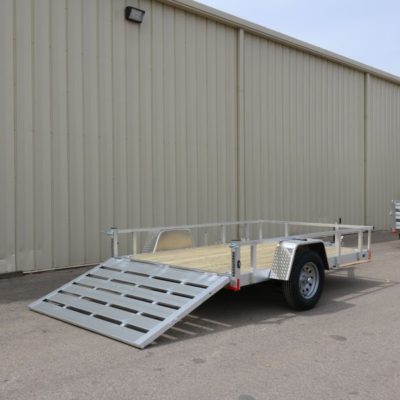

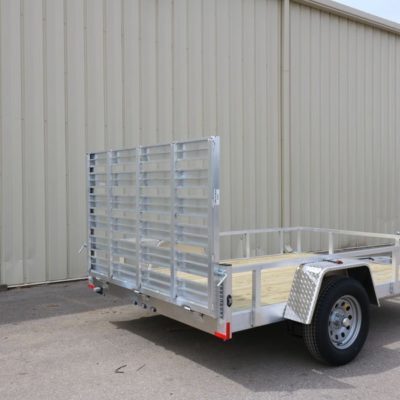

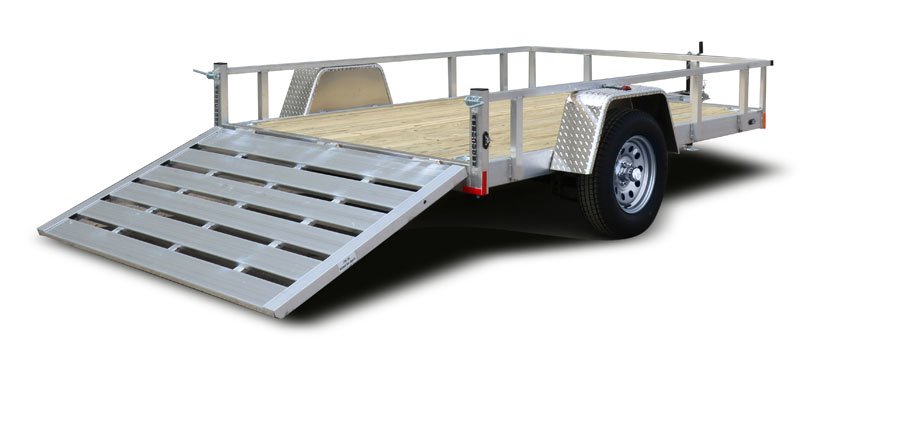

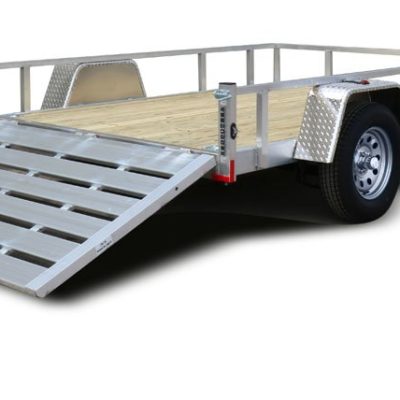

  • 5000# Capacity Removable Rear Ramps
  • (4) 5000# D-Rings
  • (2) Fold Down Rear Stab Jacks
  • Stake Pockets along both Sides
  • Limited 3 Year Structural Warranty

Specifications

7 X 16 TA 7 X 18 TA 7 X 20 TA
Overall Length 20′-0″ 22′-0″ 24′-0″
Overall Width 102″ 102″ 102″
* Overall Height 31″ 31″ 31″
Platform Height 18″ 18″ 18″
Interior Height N/A N/A N/A
Interior Overall Length 16′-0″ 18′-0″ 20′-0″
** Interior Width 80″ 80″ 80″
Between Wheel Wells N/A N/A N/A
Fenders Removable ATP Removable ATP Removable ATP
Rear Door Removable Ramps Removable Ramps Removable Ramps
Rear Door W x H N/A N/A N/A
Tongue Weight 166 179 192
Ball Size 2-5/16″ 2-5/16″ 2-5/16″
G.A.W.R. (Each Axle) 3500 3500 3500
G.V.W.R. 6990 6990 6990
Curb Weight 1380 1490 1600
Average Payload Capacity 5610 5500 5390
Brakes Electric Electric Electric
Axles Torsion 0° Torsion 0° Torsion 0°
Tires Radial Radial Radial
Wheels Silver Mod Silver Mod Silver Mod
Frame 2″ x 5″ Tube 2″ x 5″ Tube 2″ x 5″ Tube
Floor 2″ x 6″ Treated 2″ x 6″ Treated 2″ x 6″ Treated
Floor Crossmembers 16″ O/C 16″ O/C 16″ O/C

* Note: Overall height does not include roof vents or A/C. Please add 4″ for roof vents & 13″ for A/C’s.

** Note: Platform Height drops 4″ with 48″ beavertail and drops 5″ with 72″ beavertail.

Stealth Enterprises, LLC reserves the right to make changes to product offerings without notice or obligation. Standard equipment, options, specifications, materials, and other items listed on websites and printed materials are accurate at the time of publication. Some photographs may show optional items available at additional cost. Some specifications listed may be estimates. Consult your local authorized Stealth Trailer dealer for the most updated models, specifications, and pricing.
