raptor outline

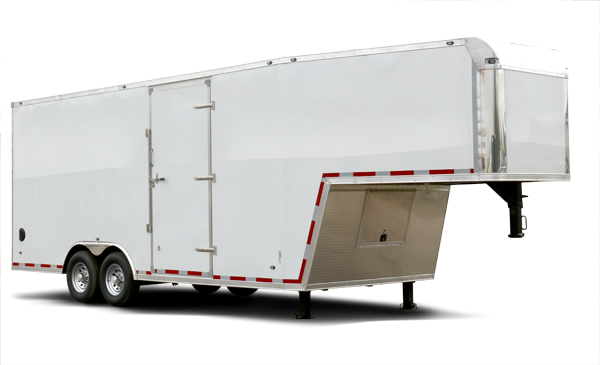

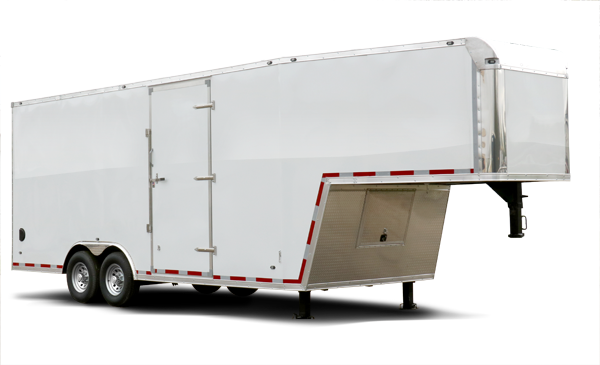

Leading in style and quality, our Raptor gooseneck models give you a wide variety of sizes and towing capacity along with a big list of better standard features. The Raptor gooseneck model comes standard as a flat roof with tapered front upper deck to allow for short-bed trucks to pull without worry. All tube frame construction allows for worry-free hauling of your precious cargo. The Raptor gooseneck is the best built model of its type in the market.

Scroll to the right to see more trailer sizes »

 7 X 20 TA27 X 22 TA27 X 24 TA27 X 26 TA27 X 28 TA27 X 30 TA27 X 32 TA27 X 34 TA38.5 X 22 TA38.5 X 24 TA38.5 X 26 TA38.5 X 28 TA38.5 X 30 TA38.5 X 32 TA38.5 X 34 TA38.5 X 36 TA38.5 X 38 TTA38.5 X 40 TTA3
Overall Length 20'-6" 22'-6" 24'-6" 26'-6" 28'-6" 30'-6" 32'-6" 34'-6" 22'-6" 24'-6" 26'-6" 28'-6" 30'-6" 32'-6" 34'-6" 36'-6" 38'-6" 40'-6"
Overall Width 102" 102" 102" 102" 102" 102" 102" 102" 102" 102" 102" 102" 102" 102" 102" 102" 102" 102"
* Overall Height 8'-5" 8'-5" 8'-5" 8'-5" 8'-5" 8'-5" 8'-5" 8'-5" 8'-7" 8'-7" 8'-7" 8'-7" 8'-7" 8'-7" 8'-7" 8'-7" 8'-8" 8'-8"
** Platform Height 20 1/2" 20 1/2" 20 1/2" 20 1/2" 20 1/2" 20 1/2" 20 1/2" 20 1/2" 23" 23" 23" 23" 23" 23" 23" 23" 24" 24"
Interior Height 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6" 6'-6"
Interior Main Floor Length 11'-10" 13'-10" 15'-10" 17'-10" 19'-10" 21'-10" 23'-10" 25'-10" 13'-10" 15'-10" 17'-10" 19'-10" 21'-10" 23'-10" 25'-10" 27'-10" 29'-10" 31'-10"
Interior Bunk Length 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4" 8'-4"
Interior Width 81" 81" 81" 81" 81" 81" 81" 81" 96" 96" 96" 96" 96" 96" 96" 96" 96" 96"
Between Wheel Wells N/A N/A N/A N/A N/A N/A N/A N/A 82" 82" 82" 82" 82" 82" 82" 82" 80" 80"
Side Door Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard Standard
Side Door W x H 36" x 72" 36" x 72" 36" x 72" 36" x 72" 36" x 72" 36" x 72" 36" x 72" 36" x 72" 48" x 78" 48" x 78" 48" x 78" 48" x 78" 48" x 78" 48" x 78" 48" x 78" 48" x 78" 48" x 78" 48" x 78"
Rear Door Ramp Ramp Ramp Ramp Ramp Ramp Ramp Ramp Ramp Ramp Ramp Ramp Ramp Ramp Ramp Ramp Ramp Ramp
Rear Door W x H 78" x 78 1/2" 78" x 78 1/2" 78" x 78 1/2" 78" x 78 1/2" 78" x 78 1/2" 78" x 78 1/2" 78" x 78 1/2" 78" x 78 1/2" 94" x 79 1/2" 94" x 79 1/2" 94" x 79 1/2" 94" x 79 1/2" 94" x 79 1/2" 94" x 79 1/2" 94" x 79 1/2" 94" x 79 1/2" 94" x 79 1/2" 94" x 79 1/2"
Tongue Weight 642 680 718 756 795 838 883 928 820 858 896 935 978 1043 1131 1178 1224 1230
Ball Size 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16" 2-5/16"
G.A.W.R. (Each Axle) 3500 3500 3500 3500 3500 3500 3500 5200 5200 5200 5200 5200 5200 5200 5200 5200 5200 5200
G.V.W.R. 6990 6990 6990 6990 6990 6990 6990 9990 9990 9990 9990 9990 9990 9990 9990 9990 15240 15240
Curb Weight 3210 3400 3590 3780 3975 4190 4415 4640 4102 4290 4480 4675 4890 5215 5655 5890 6122 6150
Average Payload Capacity 3780 3590 3400 3210 3015 2800 2575 5350 5888 5700 5510 5315 5100 4775 4335 4100 9118 9090
Brakes Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric Electric
Axles Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up Torsion 10° up
Tires ST205/75R15 LRC ST205/75R15 LRC ST205/75R15 LRC ST205/75R15 LRC ST205/75R15 LRC ST205/75R15 LRC ST205/75R15 LRC ST225/75R15 LRD ST225/75R15 LRD ST225/75R15 LRD ST225/75R15 LRD ST225/75R15 LRD ST225/75R15 LRD ST225/75R15 LRD ST225/75R15 LRD ST225/75R15 LRD ST225/75R15 LRD ST225/75R15 LRD
Wheels Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod Silver Mod
Frame 2" x 6" Tube 2" x 6" Tube 2" x 6" Tube 2" x 6" Tube 2" x 6" Tube 2" x 6" Tube 2" x 6" Tube 2" x 6" Tube 2" x 8" Tube 2" x 8" Tube 2" x 8" Tube 2" x 8" Tube 2" x 8" Tube 2" x 8" Tube 2" x 8" Tube 2" x 8" Tube 2" x 8" Tube 2" x 8" Tube
Floor 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax 3/4" Drymax
Walls 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax 3/8" Drymax
Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling Open Stud Ceiling
Floor Crossmembers 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube
Wall Posts 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube
Roof Bows 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube 16" O/C Tube

* Note: Overall height does not include roof vents or A/C. Please add 4" for roof vents & 13" for A/C's.
** Note: Platform Height drops 4" with 48" beavertail and drops 5" with 72" beavertail.

Standard Features

  • 2" X 8" Welded Tubular Steel Main Frame-Tandem Axles
  • 4" X 8" Welded Tubular Steel Main Frame-Triple Axles - 42' & Above
  • 16" O/C 2 x 5 Tube Steel Floor Crossmembers
  • 16" O/C Tube Steel Wall Studs
  • 16" O/C Tube Steel Roof Bows
  • Lippert Torsion Axles w/10 deg. Up start angle
  • Silver Radial Tires & Wheels w/Chrome Center Caps
  • TA2 Models include 3500# Axles w/ST205/75R15 Tires
  • TA3 & TTA3 Models include 5200# Axles w/ST225/75R15 Tires
  • TA4 Models include 6000# Axles w/ST235/80R16 Tires
  • All-Way Electric Brakes
  • Widetrack Axles on 7 Wide - (No Interior Wheelwells)
  • Dual Post Manual Dual-Speed Landing Gear
  • 2 5/16" Gooseneck Coupler
  • 10FT 7 Way Electrical Plug
  • Framed For Roof Vent
  • Painted Rear Sill (Ramp Door)
  • Painted Aluminum Rear Header/Corner Posts
  • 6" Barrier Tape
  • .030 S-Lock Aluminum Exterior
  • (1) Pair Plastic Flo-Thru Vents
  • Seamless Aluminum Flat Top Roof
  • Cast Aluminum Front Corners w/Brite Anodized Insert
  • 3" Heavy Duty Top & Bottom Trim
  • ATP Aluminum Fenders
  • Full Gravel Guard Over Gussets
  • 34"x26" ATP Baggage Door in Gooseneck Gravel Guard
  • with Drymax Enclosure
  • Tapered Wedge
  • Brite Anodized Front Corners
  • Cast Aluminum Rear Corners
  • 3/4" Drymax Floor
  • 3/8" Drymax Interior Walls
  • 36W x 72H Side Door w/Barlock on 7 Wide Models
  • 48W x 78H Side Door w/Barlock on 8.5 Wide Models
  • 5000# Ramp Door
  • Zinc Door Hardware
  • Beavertail
  • (4) 5000# Recessed Floor D-Rings
  • (2) 12 Volt LED Dome Lights w/Switch
  • LED Marker Lights
  • LED Strip Taillights
  • DOT/CSA Approved Safety Equipment
  • Limited 3 Year Structural Warranty

NOTE: Stealth Enterprises, LLC reserves the right to make changes to product offerings without notice or obligation. Standard equipment, options, specifications, materials, and other items listed on websites and printed materials are accurate at time of publication. Some photographs may show optional items available at additional cost. Some specifications listed may be estimates. Consult your local authorized Stealth Trailer dealer for the most updated models, specifications and pricing.
