PHANTOM I

Here you’ll find superior quality in affordable aluminum open trailer hauling. Whether it’s cargo and you need an agile utility trailer, or you’re toting an automobile or UTV; Stealth has been manufacturing better looking, more functional and longer lasting open trailers.

PHANTOM I

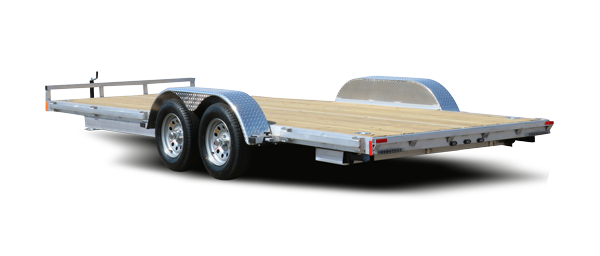

The Phantom I series is designated as our auto hauler line. The larger sizes are capable of transporting full size automobiles, while shorter sized units are ideal for smaller vehicles. Tie-downs, side ramps, or flooring options are available to meet your needs. Trust your auto hauling to Stealth’s reputation for quality.

Scroll to the right to see more trailer sizes »

7 X 16 TA7 X 18 TA7 X 20 TA
Overall Length20′-0″22′-0″24′-0″
Overall Width102″102″102″
* Overall Height31″31″31″
Platform Height18″18″18″
Interior HeightN/AN/AN/A
Interior Overall Length16′-0″18′-0″20′-0″
** Interior Width80″80″80″
Between Wheel WellsN/AN/AN/A
FendersRemovable ATPRemovable ATPRemovable ATP
Rear DoorRemovable RampsRemovable RampsRemovable Ramps
Rear Door W x HN/AN/AN/A
Tongue Weight166179192
Ball Size2-5/16″2-5/16″2-5/16″
G.A.W.R. (Each Axle)350035003500
G.V.W.R.699069906990
Curb Weight138014901600
Average Payload Capacity561055005390
BrakesElectricElectricElectric
AxlesTorsion 0°Torsion 0°Torsion 0°
TiresST205/75R15 LRCST205/75R15 LRCST205/75R15 LRC
WheelsSilver ModSilver ModSilver Mod
Frame2″ x 5″ Tube2″ x 5″ Tube2″ x 5″ Tube
Floor2″ x 6″ Treated2″ x 6″ Treated2″ x 6″ Treated
Floor Crossmembers16″ O/C16″ O/C16″ O/C

* Note: Overall height does not include roof vents or A/C. Please add 4″ for roof vents & 13″ for A/C’s.

** Note: Platform Height drops 4″ with 48″ beavertail and drops 5″ with 72″ beavertail.

STANDARD FEATURES

  • 2″x 5″ Double Hollow Tubular Aluminum Main Frame
  • 2″x 5″ Double Hollow Tubular Aluminum A-Frame
  • Triple Tube A-Frame
  • 16″ O/C Crossmembers
  • 2-5/16″ Coupler
  • 3500# Torsion Axles w/Brakes
  • ST205/75R15 LRC Radial Tires
  • Steel Silver Mod Wheels
  • Chrome Center Caps
  • ATP Removable Fenders
  • 7 Way Electrical Plug
  • DOT Approved Safety Equipment
  • LED Marker and StripTailights
  • 2 x 6 Treated Lumber Decking
  • 5000# Capacity Removable Rear Ramps
  • (4) 5000# D-Rings
  • (2) Fold Down Rear Stab Jacks
  • Stake Pockets along both Sides
  • Limited 3 Year Structural Warranty

NOTE: Stealth Enterprises, LLC reserves the right to make changes to product offerings without notice or obligation. Standard equipment, options, specifications, materials, and other items listed on websites and printed materials are accurate at time of publication. Some photographs may show optional items available at additional cost. Some specifications listed may be estimates. Consult your local authorized Stealth Trailer dealer for the most updated models, specifications and pricing.
